323271
ActiveTE Connectivity AMP Connectors

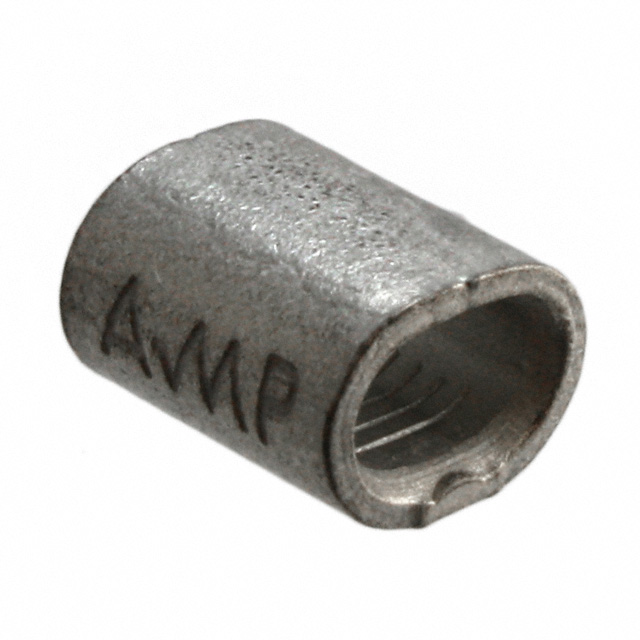

CONN INLINE 8 AWG CRIMP
323271
ActiveTE Connectivity AMP Connectors
CONN INLINE 8 AWG CRIMP
Description
General part information
3232 Series
Parallel Splice, 8 AWG, 8 mm² Wire, Serrated, 13100 – 20800 CMA, Copper, 9.78 mm [.385 in] Length, Loose Piece, Closed Barrel, Solid / Stranded Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 323271 |
|---|---|
| Features | Brazed Seam, Serrated Mating Area |
| Insulation | Non-Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Individual Openings (Parallel) |
| Termination | Crimp |
| Wire Gauge | 8 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
WIRE CONNECTORS, BUTT AND PARALLEL SPLICES, NON-INSULATED TYPE SOLISTRAND REPORT
WIRE CONN, TERMINALS, BUTT AND PARALLEL CONNECTORS-PLASTI-GRIP, SOLISTRAND, STD B, DIAMOND GRIP, PIDG AND AMPOWER REPORT
Datasheet
SOLISTRAND Pressure Type Wire Connectors, Terminals and Splices (Use Type W Tooling)
Plastic-Grip terminals
PLASTI-GRIP INSULATED BUTT SPLICES, TERMNAL SPLICES AND TERMINALS REPORT
ENG_CD_323271_G.pdf
Plastic-Grip and Solistrand terminal, butt and parallel connectors
