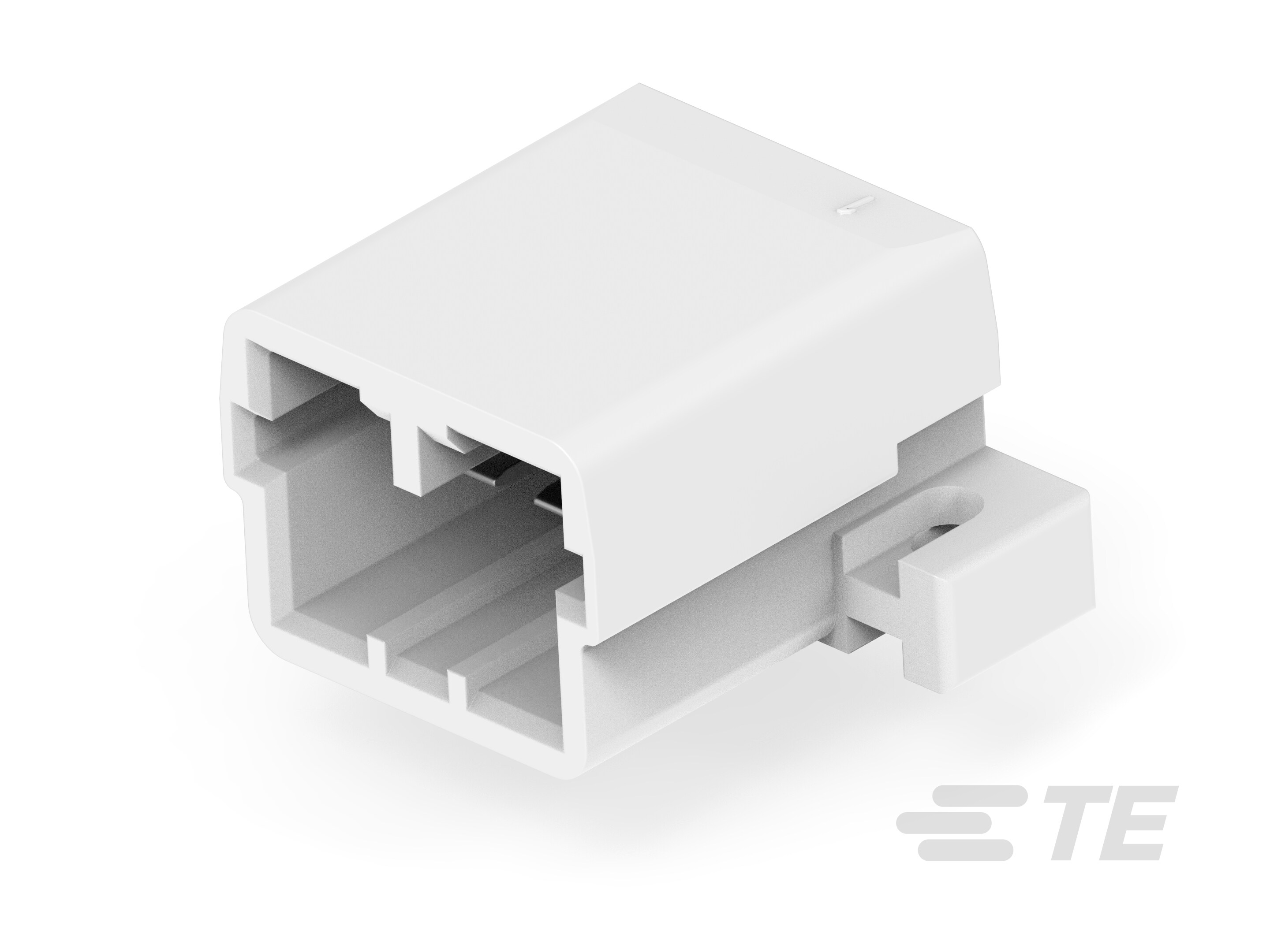

Specification	175781-1

Applications	General Purpose, Automotive
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.157 in
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Tab
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Color	White
Insulation Height	0.492 in
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole, Right Angle
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch - Mating	0.138 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

Multilock Connector System Series

...

Part	Contact Termination	Pin or Socket	Type	Contact Finish	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Note	Color	Insulation Material	Number of Positions	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Row Spacing	Number of Rows	Features	Fastening Type	Contact Type	Contact Shape	Number of Positions Loaded	Contact Finish - Mating	Current Rating	Current Rating	Style	Shrouding	Pitch - Mating	Contact Finish - Post	Insulation Color	Termination	Contact Material	Contact Length - Post	Insulation Height	Applications	Pitch	Accessory Type	For Use With/Related Products
TE Connectivity AMP Connectors 284088-1	Crimp	Socket	Stamped	Tin	18 AWG	16 AWG
TE Connectivity AMP Connectors 284159-1	Crimp						Contacts Not Included	Black	Glass Filled Nylon 6/6 Polyamide (PA66)	12	Free Hanging (In-Line)	-30 °C	105 °C	Receptacle	0.232 in	2	Right Angle Cable Exit	Latch Holder	Female Socket
TE Connectivity AMP Connectors 284160-1
TE Connectivity AMP Connectors 175506-2									Polybutylene Terephthalate (PBT)	6	Right Angle Through Hole	-30 °C	105 °C			1	Mounting Flange	Locking Ramp	Tab	Rectangular	All	Tin	0 A	Varies by Wire Gauge	Board Cable/Wire	Shrouded - 4 Wall	0.098 in	Tin	Black	Solder	Brass	0.146 in	0.453 in	Automotive General Purpose
TE Connectivity AMP Connectors 282369-1	Crimp						Contacts Not Included	Natural	Polybutylene Terephthalate (PBT)	20	Free Hanging (In-Line)	-30 °C	105 °C	Plug	0.232 in	2		Latch Lock	Female Socket
TE Connectivity AMP Connectors 174514-6	Crimp						Contacts Not Included	Gray	Polybutylene Terephthalate (PBT)	16	Free Hanging (In-Line)	-30 °C	105 °C	Plug	0.205 in	2		Latch Holder	Female Socket																0.118 in
TE Connectivity AMP Connectors 175783-2									Polybutylene Terephthalate (PBT)	6	Right Angle Through Hole	-30 °C	105 °C			1	Mounting Flange	Latch Holder	Tab	Rectangular	All	Tin	0 A	Varies by Wire Gauge	Board Cable/Wire	Shrouded - 4 Wall	0.138 in	Tin	Black	Solder	Brass		0.492 in
TE Connectivity AMP Connectors 174921-1	Crimp						Contacts Not Included	White	Polybutylene Terephthalate (PBT)	3	Free Hanging (In-Line)	-30 °C	105 °C	Plug		1		Latch Holder	Female Socket																0.138 in
TE Connectivity AMP Connectors 1612684-1										26																										Cap (Cover)	Multi-Lock Series
TE Connectivity AMP Connectors 175221-1	Crimp	Socket		Tin	20.5 AWG	16 AWG
