SE2568U-EK1

Unknown

Skyworks Solutions Inc.

EVAL KIT FOR SE2568U

Search across all available documentation for this part.

Unknown

Skyworks Solutions Inc.

EVAL KIT FOR SE2568U

Technical Specifications

Parameters and characteristics for this part

Specification	SE2568U-EK1

For Use With/Related Products	SE2568U
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Power Amplifier

Part	Supplied Contents	For Use With/Related Products	Frequency	Type	Supplier Device Package	Mounting Type	RF Type	Gain	Test Frequency [Max]	Test Frequency [Min]	Package / Case	Current - Supply	Frequency [Max]	Frequency [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	P1dB
Skyworks Solutions Inc. SE2568U-EK1	Board(s)	SE2568U	2.4 GHz	Power Amplifier
Skyworks Solutions Inc. SE2568U-R					8-QFN (2x2)	Surface Mount	802.11b/g/n	28 dBi	2.5 GHz	2.4 GHz	8-XFQFN Exposed Pad	175 mA	2.5 GHz	2.4 GHz	5 V	3 V	25 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

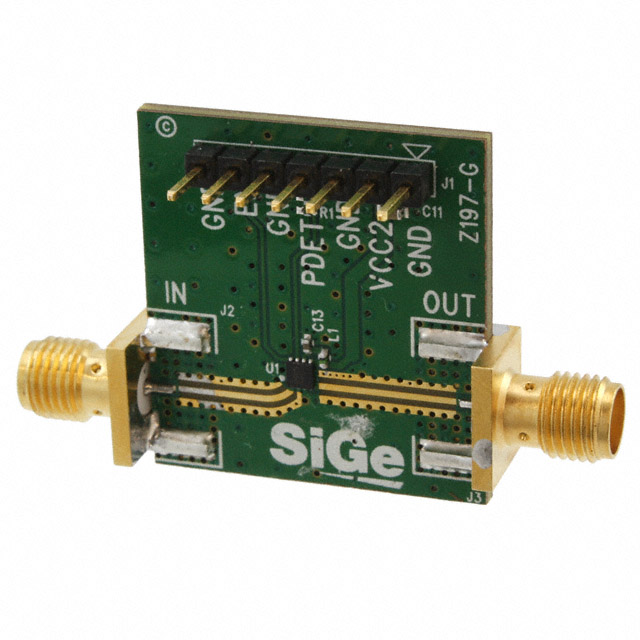

- SE2568U Power Amplifier 2.4GHz Evaluation Board
