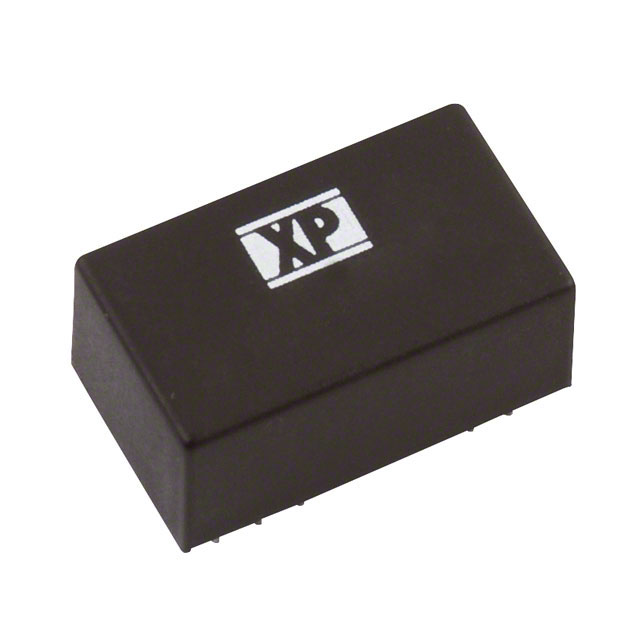

LDU2430S700

Obsolete

XP POWER

LED DRIVER CC BUCK 2-28V 700MA

Search across all available documentation for this part.

Obsolete

XP POWER

LED DRIVER CC BUCK 2-28V 700MA

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Topology	Voltage - Output [Max]	Voltage - Output [Min]	Number of Outputs	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Weight	Weight	Type	Current - Output (Max) [Max]	Dimming	Approval Agency	Voltage - Input (Max) [Max]	Package / Case	Package / Case
XP POWER LDU2430S600	0.4 "	0.92 in	10.2 mm	14 mm	23.4 mm	0.55 in	Buck	28 V	2 V	1	Remote On/Off SCP	17 W	85 °C	-40 °C	Through Hole	95 %	7 V	0.014 lb	6.35 g	Constant Current	600 mA	Analog PWM	EN	30 V	16-DIP Module	9 PC Pad
XP POWER LDU2430S700	0.4 "	0.92 in	10.2 mm	14 mm	23.4 mm	0.55 in	Buck	28 V	2 V	1	Remote On/Off SCP	20 W	85 °C	-40 °C	Through Hole	95 %	7 V	0.014 lb	6.35 g	Constant Current	700 mA	Analog PWM	EN	30 V	16-DIP Module	9 PC Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

700mA 2 ~ 28V Constant Current LED Driver Buck Topology 1 Output
