341-018 Series

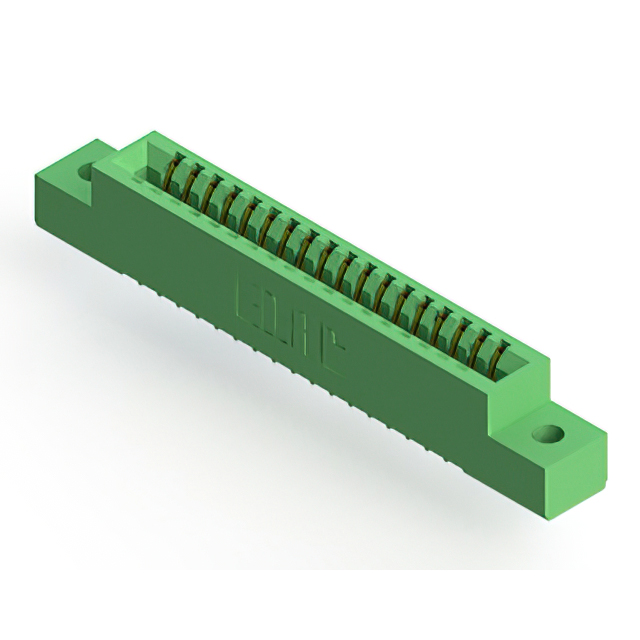

18 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	341-018-524-102

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Unthreaded, Top Opening
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1 rows

341-018 Series

Part	Read Out	Number of Rows	Contact Finish Thickness	Flange Feature Diameter	Flange Feature	Card Type	Color	Number of Positions	Contact Type	Termination	Contact Finish	Mounting Type	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Gender	Pitch	Card Thickness (Min)	Card Thickness (Max)	Termination Rows	Material - Insulation	Features
EDAC Inc. 341-018-522-204	Dual	2	10 Ąin	0.156 in	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Green	9 18	Semi Bellows	Solder	Gold	Through Hole	Copper Alloy	-40 °C	105 °C	Female	0.1 in	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
EDAC Inc. 341-018-522-102	Single	1	10 Ąin	0.128 in	Flush Mount Top Opening Unthreaded	Non Specified Single Edge	Green	18	Semi Bellows	Solder	Gold	Through Hole	Copper Alloy	-40 °C	105 °C	Female	0.1 in	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 341-018-556-202	Dual	2	10 Ąin	0.128 in	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Green	9 18	Semi Bellows	Solder	Gold	Board Edge Straddle Mount	Copper Alloy	-40 °C	105 °C	Female	0.1 in	0.054 in	0.07 in	2 rows	Polyester Thermoplastic	Card Extender
EDAC Inc. 341-018-521-108	Single	1	10 Ąin		4-40 Flush Mount Threaded Insert Top Opening	Non Specified Single Edge	Green	18	Semi Bellows	Solder	Gold	Through Hole	Copper Alloy	-40 °C	105 °C	Female	0.1 in	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 341-018-524-101	Single	1	10 Ąin			Non Specified Single Edge	Green	18	Semi Bellows	Solder	Gold	Through Hole	Copper Alloy	-40 °C	105 °C	Female	0.1 in	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 341-018-560-208	Dual	2	10 Ąin		4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	Green	9 18	Semi Bellows	Solder	Gold	Through Hole	Copper Alloy	-40 °C	105 °C	Female	0.1 in	0.054 in	0.07 in	2 rows	Polyester Thermoplastic	Card Extender
EDAC Inc. 341-018-500-202	Dual	2	10 Ąin	0.128 in	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Green	9 18	Semi Bellows	Solder Eyelet(s)	Gold	Through Hole	Copper Alloy	-40 °C	105 °C	Female	0.1 in	0.054 in	0.07 in	2 rows	DAP Diallyl Phthalate
EDAC Inc. 341-018-524-202	Dual	2	10 Ąin	0.128 in	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Green	9 18	Semi Bellows	Solder	Gold	Through Hole	Copper Alloy	-40 °C	105 °C	Female	0.1 in	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
EDAC Inc. 341-018-524-102	Single	1	10 Ąin	0.128 in	Flush Mount Top Opening Unthreaded	Non Specified Single Edge	Green	18	Semi Bellows	Solder	Gold	Through Hole	Copper Alloy	-40 °C	105 °C	Female	0.1 in	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 341-018-521-208	Dual	2	10 Ąin		4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	Green	9 18	Semi Bellows	Solder	Gold	Through Hole	Copper Alloy	-40 °C	105 °C	Female	0.1 in	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
