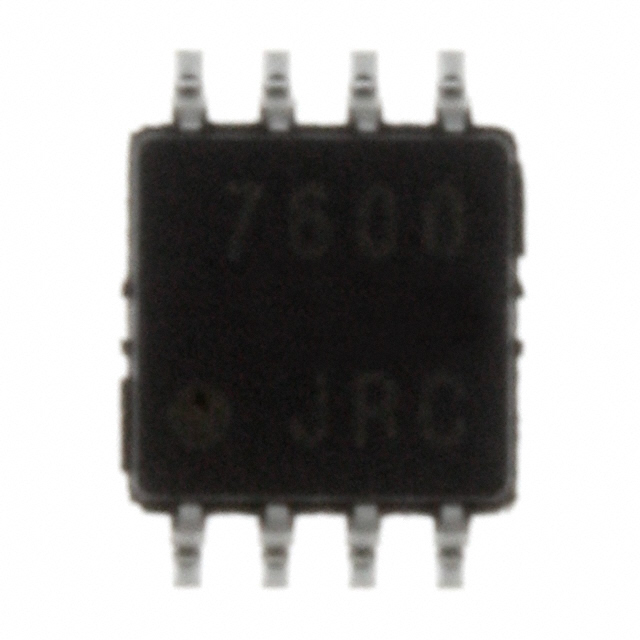

NJU7600RB1-TE1
ObsoleteNisshinbo Micro Devices Inc
IC REG BOOST FLYBACK ADJ 8TVSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJU7600RB1-TE1
ObsoleteNisshinbo Micro Devices Inc
IC REG BOOST FLYBACK ADJ 8TVSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJU7600RB1-TE1 |
|---|---|
| Frequency - Switching [Max] | 1 MHz |
| Frequency - Switching [Min] | 300 kHz |
| Function | Step-Up, Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 8-VSSOP, 8-MSOP |
| Supplier Device Package | 8-TVSP |
| Synchronous Rectifier | False |
| Topology | Boost, Flyback |
| Voltage - Input (Max) [Max] | 8 V |
| Voltage - Input (Min) [Min] | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 0.57 | |
Description
General part information
NJU7600 Series
Boost, Flyback Switching Regulator IC Positive Adjustable 1 Output 8-VSSOP, 8-MSOP (0.110", 2.80mm Width)
