CPST-3-01

Active

Essentra Access Solutions

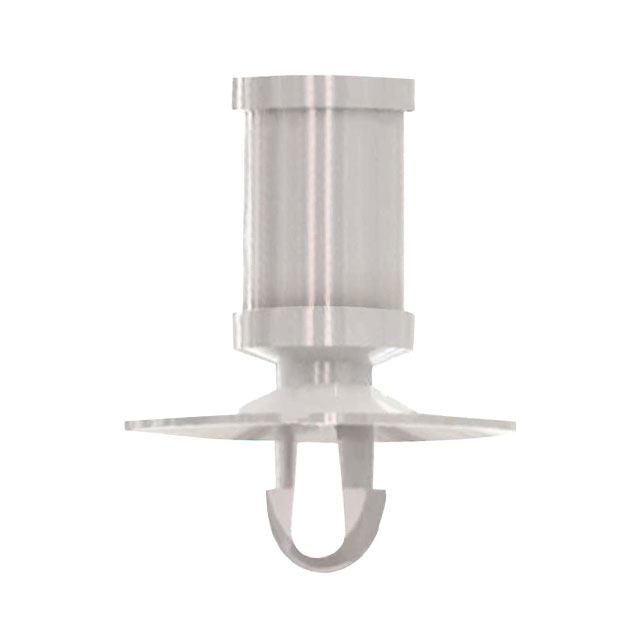

PUSH SPACER CUP-TEARDROP 3/16"

Search across all available documentation for this part.

Active

Essentra Access Solutions

PUSH SPACER CUP-TEARDROP 3/16"

Technical Specifications

Parameters and characteristics for this part

Specification	CPST-3-01

Between Board Height	0.188 "
Between Board Height	4.78 mm
Between Board Height	0.1875 "
Holding Type	Resting Mount
Length - Overall	0.328 in
Length - Overall	8.33 mm
Material	Nylon
Mounting Hole Diameter [diameter]	2.54 mm
Mounting Hole Diameter [diameter]	0.1 in
Mounting Panel Thickness	0.062 in
Mounting Panel Thickness	0.0625 in
Mounting Panel Thickness	1.57 mm
Mounting Type	Snap Lock

Part	Length - Overall	Length - Overall	Material	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Between Board Height	Between Board Height	Between Board Height	Mounting Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Holding Type	Length - Overall	Length - Overall [x]	Length - Overall [x]
Essentra Access Solutions CPST-7-01	14.69 mm	0.578 in	Nylon	0.062 in	0.0625 in	1.57 mm	0.438 in	0.4375 in	11.13 mm	Snap Lock	2.54 mm	0.1 in	Resting Mount
Essentra Access Solutions CPST-3-01		8.33 mm	Nylon	0.062 in	0.0625 in	1.57 mm	0.188 "	4.78 mm	0.1875 "	Snap Lock	2.54 mm	0.1 in	Resting Mount	0.328 in
Essentra Access Solutions CPST-4-01			Nylon	0.062 in	0.0625 in	1.57 mm	0.25 in	6.35 mm	0.25 in	Snap Lock	2.54 mm	0.1 in	Resting Mount		0.391 in	9.93 mm
Essentra Access Solutions CPST-5-01			Nylon	0.062 in	0.0625 in	1.57 mm	0.313 "	7.95 mm	0.3125 in	Snap Lock	2.54 mm	0.1 in	Resting Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Resting Mount / Snap Lock Nylon 0.188" (4.78mm) 3/16"

Technical documentation and resources

No documents available
