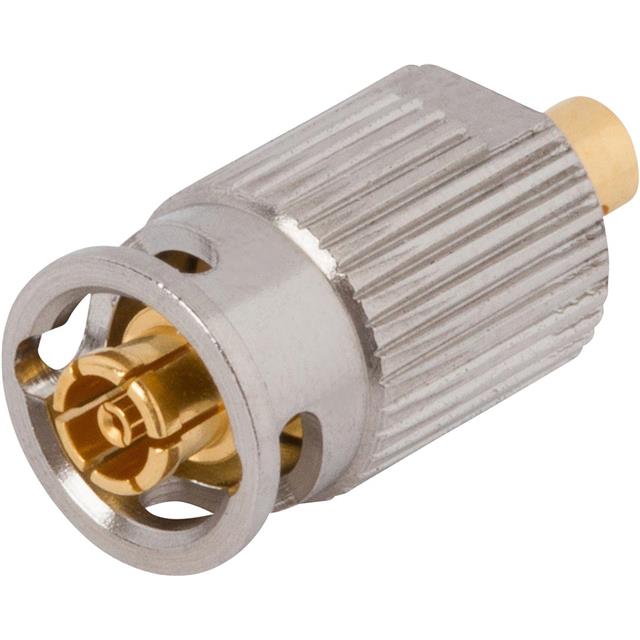

Specification	3221-60003

Body Finish	Passivated, Gold
Body Material	Beryllium Copper, Stainless Steel
Cable Group	Flexible
Cable Group Size	0.047 "
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max	65 GHz
Housing Color	Gold, Silver
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Solder

3221-60 Series

Part	Center Contact Plating	Dielectric Material	Body Material	Body Finish	Number of Ports	Connector Style	Impedance	Housing Color	Shield Termination	Connector Type	Center Contact Material	Contact Termination	Fastening Type	Mounting Type	Frequency - Max	Cable Group Size	Cable Group
McGill Microwave Systems 3221-60003	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper Stainless Steel	Gold Passivated	1	SMPM	50 Ohm	Gold Silver	Solder	Female Socket Jack	Beryllium Copper	Solder	Bayonet Lock	Free Hanging (In-Line)	65 GHz	0.047 "	Flexible
