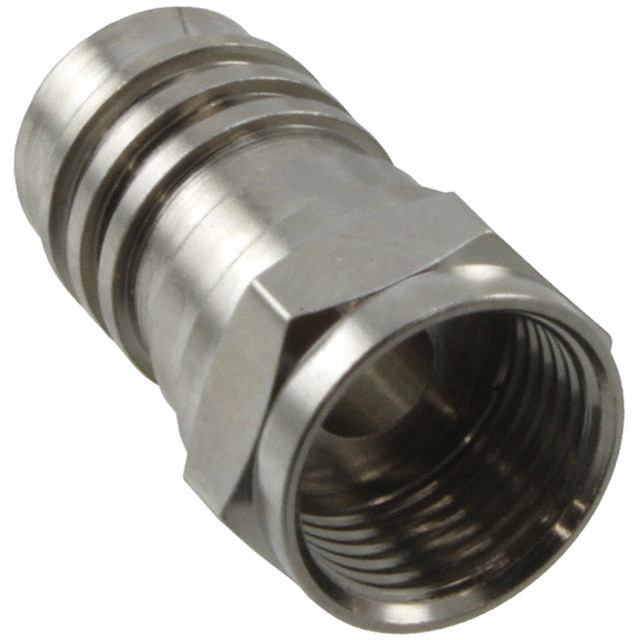

Specification	222117

Body Finish	Nickel
Body Material	Brass
Cable Group	8279, 8263, 140, 210, 9209, Belden 8241, 62, 59B, RG-59
Connector Style	F Type
Connector Type	Male Pin, Plug
Fastening Type	Threaded
Frequency - Max	2 GHz
Housing Color	Silver
Impedance	75 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

2221 Series

Part	Center Contact Plating	Body Finish	Includes Total Count	Includes	Mating Cycles	Body Material	Dielectric Material	Impedance	Housing Color	Center Contact Material	Connector Style	Contact Termination	Frequency - Max	Shield Termination	Cable Group	Cable Group Current Rating	Mounting Type	Number of Ports	Fastening Type	Connector Type	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Center Gender	Convert From (Adapter End)	Conversion Type	Style	Adapter Series	Adapter Type	Mounting Feature	Operating Temperature (Min)	Operating Temperature (Max)	Cable Group Diameter (Default)	Cable Group Diameter (Semi Rigid)
McGill Microwave Systems 222123	Gold	Nickel	3 pcs	Connector Contact Ferrule	500 cycles	Brass	Polyoxymethylene (POM) Acetal	75 Ohm	Silver	Brass	F Type	Solder	2 GHz	Crimp	143 212 54 89248 9290 Belden 1152A RG-6	6 A	Free Hanging (In-Line)	1	Threaded	Male Pin Plug
McGill Microwave Systems 222183	Tin	Tin-Lead	3 pcs	Connector Contact Ferrule	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	75 Ohm	Silver	Brass	F Type	Solder	2 GHz	Crimp	RG-316 Double Braid		Free Hanging (In-Line)	1	Threaded	Male Pin Plug
McGill Microwave Systems 222171	Gold	Nickel	3 pcs	Connector Contact Ferrule	500 cycles	Brass	Polyoxymethylene (POM) Acetal	75 Ohm	Silver	Brass	F Type	Crimp	2 GHz	Crimp	Belden 1695A RG-6 Plenum		Free Hanging (In-Line)	1	Threaded	Male Pin Plug
McGill Microwave Systems 222121	Tin	Nickel	3 pcs	Connector Lockwasher Nut		Zinc Die Cast	Polypropylene (PP)	75 Ohm		Brass			2 GHz				Panel Mount		Threaded		F Jack	Female Socket	Female	F Jack Female Socket	Same Series	Straight	F to F	Jack to Jack	Bulkhead	-55 °C	85 °C
McGill Microwave Systems 222115	Tin	Tin-Lead	3 pcs	Connector Contact Insulator	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	50 Ohm	Silver	Brass	F Type	Solder	2 GHz	Solder	RG-405		Free Hanging (In-Line)	1	Threaded	Male Pin Plug												0.085 in	0.086 in
McGill Microwave Systems 222119	Gold	Nickel	3 pcs	Connector Contact Ferrule	500 cycles	Brass	Polyoxymethylene (POM) Acetal	75 Ohm	Silver	Brass	F Type	Crimp	2 GHz	Crimp	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59		Free Hanging (In-Line)	1	Threaded	Male Pin Plug
McGill Microwave Systems 222124		Nickel			500 cycles	Brass		75 Ohm	Silver		F Type	Crimp	2 GHz	Crimp	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59		Free Hanging (In-Line)	1	Threaded	Male Pin Plug
McGill Microwave Systems 222131	Tin	Nickel			500 cycles	Brass	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTF	75 Ohm	Silver	Brass	F Type	Solder	2 GHz	Solder			Right Angle Through Hole	1	Threaded	Female Socket Recepture
McGill Microwave Systems 222196	Gold	Nickel	3 pcs	Connector End Cap Ferrule	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	75 Ohm	Silver	Brass	F Type	Solder	2 GHz	Crimp	Belden 9258 LMR-240		Free Hanging (In-Line) Right Angle	1	Threaded	Male Pin Plug
McGill Microwave Systems 222114	Tin	Tin			500 cycles	Brass	Polypropylene (PP)	75 Ohm	Silver	Brass	F Type	Solder	1 GHz	Crimp	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179		Panel Mount	1	Threaded	Female Socket Jack									Bulkhead Front Side Nut
