2221 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

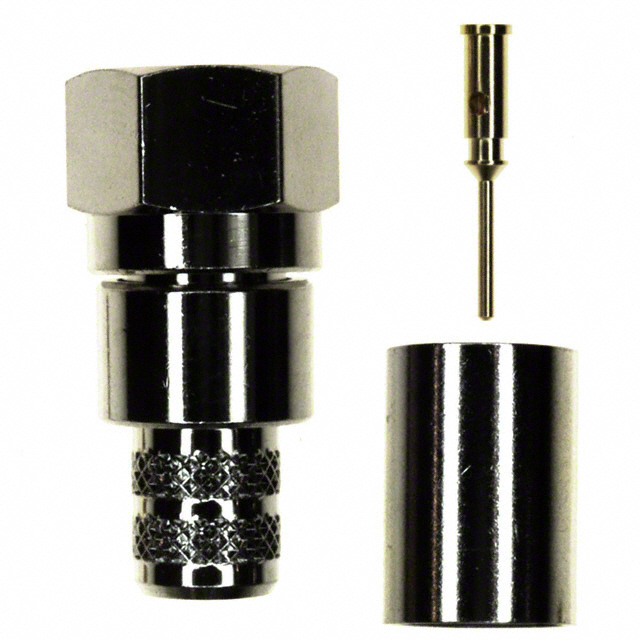

RF / COAXIAL CONNECTOR, F COAXIAL, STRAIGHT PLUG, CRIMP, 75 OHM, RG6, BRASS
| Part | Center Contact Plating | Body Finish | Includes Total Count | Includes | Mating Cycles | Body Material | Dielectric Material | Impedance | Housing Color | Center Contact Material | Connector Style | Contact Termination | Frequency - Max | Shield Termination | Cable Group | Cable Group Current Rating | Mounting Type | Number of Ports | Fastening Type | Connector Type | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Center Gender | Convert From (Adapter End) | Conversion Type | Style | Adapter Series | Adapter Type | Mounting Feature | Operating Temperature (Min) | Operating Temperature (Max) | Cable Group Diameter (Default) | Cable Group Diameter (Semi Rigid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | Nickel | 3 pcs | Connector Contact Ferrule | 500 cycles | Brass | Polyoxymethylene (POM) Acetal | 75 Ohm | Silver | Brass | F Type | Solder | 2 GHz | Crimp | 143 212 54 89248 9290 Belden 1152A RG-6 | 6 A | Free Hanging (In-Line) | 1 | Threaded | Male Pin Plug | |||||||||||||
 McGill Microwave Systems | Tin | Tin-Lead | 3 pcs | Connector Contact Ferrule | 500 cycles | Brass | Polytetrafluoroethylene (PTFE) | 75 Ohm | Silver | Brass | F Type | Solder | 2 GHz | Crimp | RG-316 Double Braid | Free Hanging (In-Line) | 1 | Threaded | Male Pin Plug | ||||||||||||||
 McGill Microwave Systems | Gold | Nickel | 3 pcs | Connector Contact Ferrule | 500 cycles | Brass | Polyoxymethylene (POM) Acetal | 75 Ohm | Silver | Brass | F Type | Crimp | 2 GHz | Crimp | Belden 1695A RG-6 Plenum | Free Hanging (In-Line) | 1 | Threaded | Male Pin Plug | ||||||||||||||
 McGill Microwave Systems | Tin | Nickel | 3 pcs | Connector Lockwasher Nut | Zinc Die Cast | Polypropylene (PP) | 75 Ohm | Brass | 2 GHz | Panel Mount | Threaded | F Jack | Female Socket | Female | F Jack Female Socket | Same Series | Straight | F to F | Jack to Jack | Bulkhead | -55 °C | 85 °C | |||||||||||
 McGill Microwave Systems | Tin | Tin-Lead | 3 pcs | Connector Contact Insulator | 500 cycles | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohm | Silver | Brass | F Type | Solder | 2 GHz | Solder | RG-405 | Free Hanging (In-Line) | 1 | Threaded | Male Pin Plug | 0.085 in | 0.086 in | ||||||||||||
 McGill Microwave Systems | Gold | Nickel | 3 pcs | Connector Contact Ferrule | 500 cycles | Brass | Polyoxymethylene (POM) Acetal | 75 Ohm | Silver | Brass | F Type | Crimp | 2 GHz | Crimp | 140 210 59B 62 8263 8279 9209 Belden 8241 RG-59 | Free Hanging (In-Line) | 1 | Threaded | Male Pin Plug | ||||||||||||||
 McGill Microwave Systems | Nickel | 500 cycles | Brass | 75 Ohm | Silver | F Type | Crimp | 2 GHz | Crimp | 140 210 59B 62 8263 8279 9209 Belden 8241 RG-59 | Free Hanging (In-Line) | 1 | Threaded | Male Pin Plug | |||||||||||||||||||

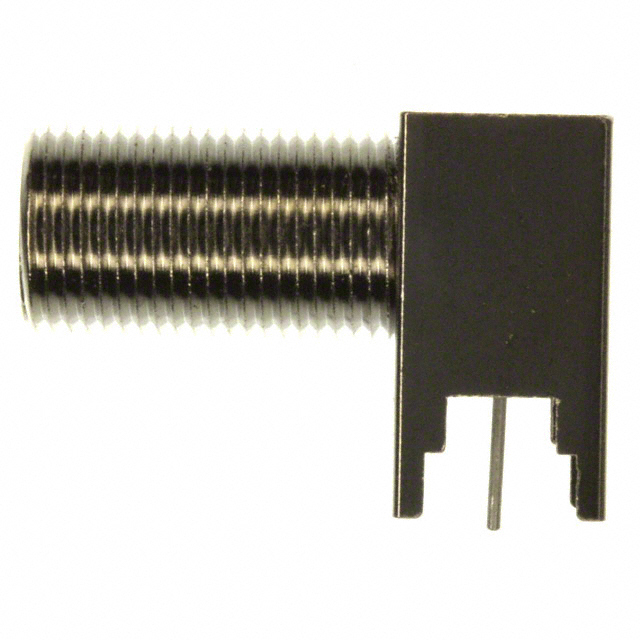

 McGill Microwave Systems | Tin | Nickel | 500 cycles | Brass | Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTF | 75 Ohm | Silver | Brass | F Type | Solder | 2 GHz | Solder | Right Angle Through Hole | 1 | Threaded | Female Socket Recepture | |||||||||||||||||
McGill Microwave Systems | Gold | Nickel | 3 pcs | Connector End Cap Ferrule | 500 cycles | Brass | Polytetrafluoroethylene (PTFE) | 75 Ohm | Silver | Brass | F Type | Solder | 2 GHz | Crimp | Belden 9258 LMR-240 | Free Hanging (In-Line) Right Angle | 1 | Threaded | Male Pin Plug | ||||||||||||||
 McGill Microwave Systems | Tin | Tin | 500 cycles | Brass | Polypropylene (PP) | 75 Ohm | Silver | Brass | F Type | Solder | 1 GHz | Crimp | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | Panel Mount | 1 | Threaded | Female Socket Jack | Bulkhead Front Side Nut |
