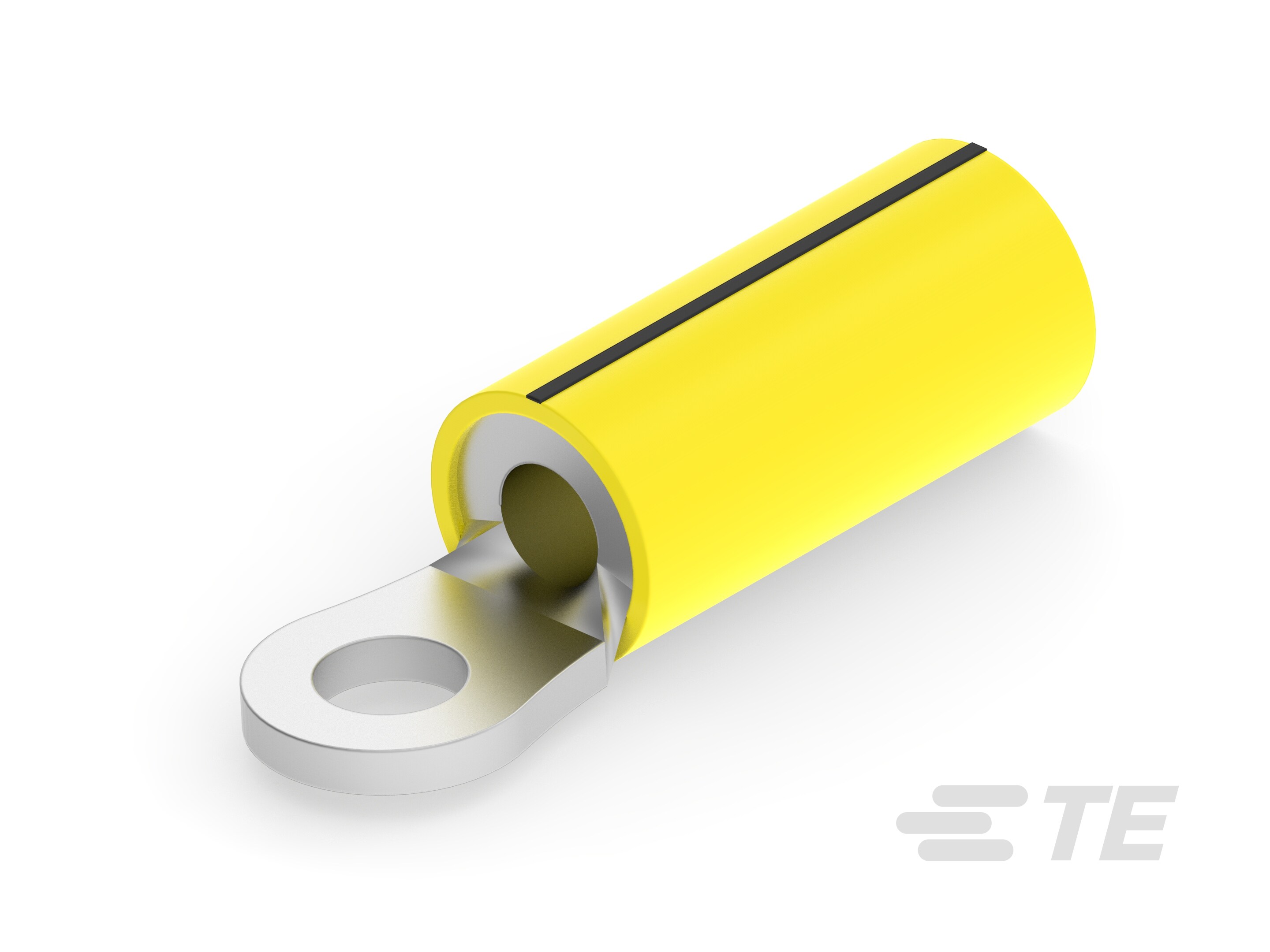

Specification	2-320631-1

Color	Black Stripe, Yellow
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination, Heavy Duty
Insulation	Insulated
Insulation Diameter (Max)	0.23 in
Insulation Diameter (Min)	0.15 in
Length - Overall	0.553 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.048 in
Width - Outer Edges	0.281 in
Wire Gauge (AWG) (Max)	16 AWG
Wire Gauge (AWG) (Min)	14 AWG

320631 Series

Part	Stud/Tab Size	Insulation	Thickness	Color	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Width - Outer Edges	Mounting Type	Termination	Features	Contact Material	Terminal Type	Contact Finish	Length - Overall	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)
TE Connectivity AMP Connectors 2-320631-1	6 Stud	Insulated	0.048 in	Black Stripe Yellow	16 AWG	14 AWG	0.281 in	Free Hanging (In-Line)	Crimp	Heavy Duty Serrated Termination	Copper	Circular	Tin	0.553 in	Nylon PA Polyamide	0.15 in	0.23 in
