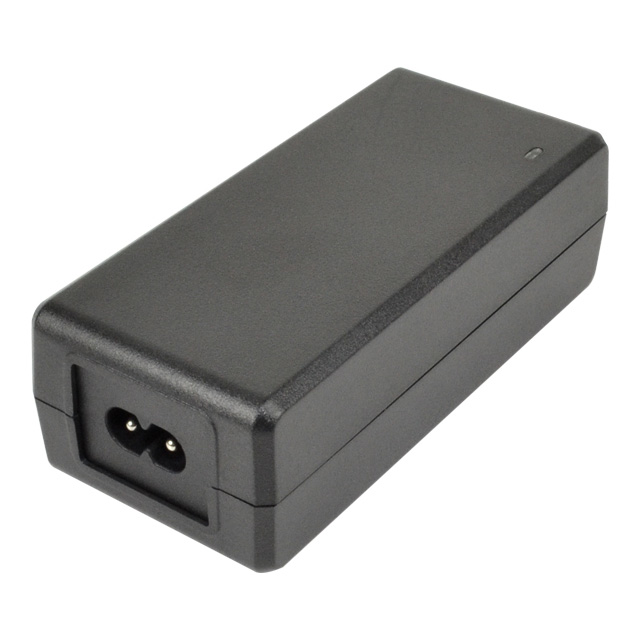

SDI65-48-UD-P6

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 48V 65W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Supply Safety Standards, Agencies, and Marks

SDI65-48-UD-P6

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 48V 65W

Deep-Dive with AI

DocumentsDatasheet Power Supply Safety Standards, Agencies, and Marks

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDI65-48-UD-P6

Applications	ITE (Commercial)
Approval Agency	FCC, EN, CCC, CB Scheme, IEC, PSE, UL, RCM, CSA
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.36 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption	210 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.53 "
Size / Dimension [x]	115 mm
Size / Dimension [y]	2.09 "
Size / Dimension [y]	53 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Standard Number	C22.2 No. 60950-1, 55024, 62368-1, 60950-1, 61000-3-3, 55032 Class B, 61000-3-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V
Weight	310.26 g
Weight	0.684 lb

SDI65-U Series

Desktop AC Adapters 15V 4.34A 2.5 cent + 65W C14 NA cord VI

Part	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Power (Watts)	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Form	Polarization	Applications	Output Connector [diameter]	Output Connector [x]	Output Connector	Operating Temperature [Max]	Region Utilized	Voltage - Output	Current - Output (Max) [Max]	No Load Power Consumption	Efficiency	Standard Number	Input Connector	Weight	Weight	Output Connector [z]	Output Connector [y]	No Load Power Consumption [Max]
CUI Inc. SDI65-18-UDC-P6	1.5 m	59 in	90 VAC	264 VAC	Cord	65 W	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Desktop (Class II)	Positive Center	ITE (Commercial)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	North America	18 V	3.62 A	210 mW	CoC Tier 2 Level VI	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	IEC 320-C8
CUI Inc. SDI65-15-UC-P6R	1.5 m	59 in	90 VAC	264 VAC	Cord	65 W	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Desktop (Class I)	Positive Center	ITE (Commercial)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	North America	15 VDC	4.34 A	210 mW	CoC Tier 2 Level VI	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	IEC 320-C14
CUI Inc. SDI65-12-U-P6R	1.5 m	59 in	90 VAC	264 VAC	Cord	60 W	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Desktop (Class I)	Positive Center	ITE (Commercial)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug R/A	40 °C	International	12 V	5 A	210 mW	CoC Tier 2 Level VI	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	IEC 320-C14	310.26 g	0.684 lb
CUI Inc. SDI65-24-U-P6	1.5 m	59 in	90 VAC	264 VAC	Cord	65 W	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Desktop (Class I)	Positive Center	ITE (Commercial)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	International	24 V	2.71 A	210 mW	CoC Tier 2 Level VI	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	IEC 320-C14	310.26 g	0.684 lb
CUI Inc. SDI65-18-U2-P5R	1.5 m	59 in	90 VAC	264 VAC	Cord	65 W	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Desktop (Class I)	Positive Center	ITE (Commercial)		2.1 mm	Barrel Plug R/A	40 °C	Europe	18 V	3.62 A		CoC Tier 2 Level VI	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	IEC 320-C14			9.5 mm	5.5 mm	150 mW
CUI Inc. SDI65-19-U-P5	1.5 m	59 in	90 VAC	264 VAC	Cord	65 W	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Desktop (Class I)	Positive Center	ITE (Commercial)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	International	19 V	3.43 A	210 mW	CoC Tier 2 Level VI	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	IEC 320-C14	310.26 g	0.684 lb
CUI Inc. SDI65-48-UC-P6	1.5 m	59 in	90 VAC	264 VAC	Cord	65 W	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Desktop (Class I)	Positive Center	ITE (Commercial)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	North America	48 V	1.36 A	210 mW	CoC Tier 2 Level VI	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	IEC 320-C14
CUI Inc. SDI65-48-UD-P6	1.5 m	59 in	90 VAC	264 VAC	Cord	65 W	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Desktop (Class II)	Positive Center	ITE (Commercial)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	International	48 V	1.36 A	210 mW	CoC Tier 2 Level VI	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	IEC 320-C8	310.26 g	0.684 lb
CUI Inc. SDI65-12-UD-ST	1.5 m	59 in	90 VAC	264 VAC	Cord	60 W	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Desktop (Class II)		ITE (Commercial)			Stripped Tinned Wire Leads	40 °C	International	12 V	5 A	210 mW	CoC Tier 2 Level VI	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	IEC 320-C8
CUI Inc. SDI65-12-U2-P6	1.5 m	59 in	90 VAC	264 VAC	Cord	60 W	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Desktop (Class I)	Positive Center	ITE (Commercial)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	Europe	12 V	5 A		CoC Tier 2 Level VI	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	IEC 320-C14					150 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 24.35
		5	$ 22.39
		10	$ 21.59
		40	$ 20.09
		80	$ 20.07
