MC68340CAB16E

Active

Freescale Semiconductor

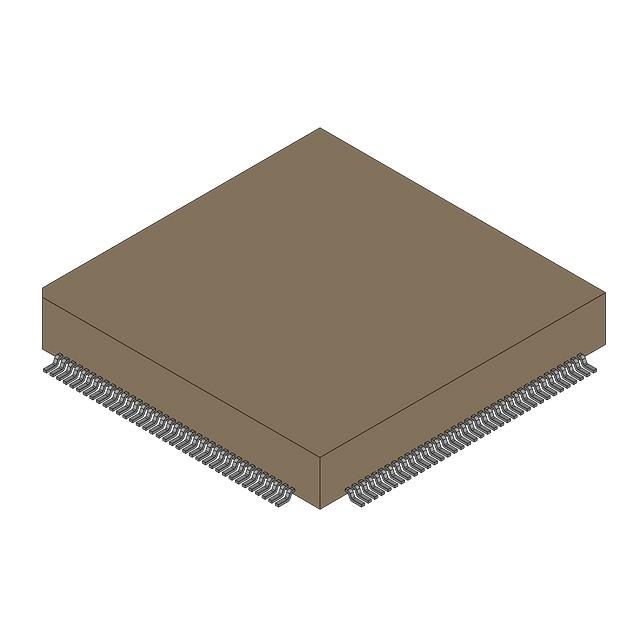

IC MPU M683XX 16MHZ 144QFP

Search across all available documentation for this part.

Active

Freescale Semiconductor

IC MPU M683XX 16MHZ 144QFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 68.21

General part information

CPU32 Microprocessor IC M683xx 1 Core, 32-Bit 16MHz 144-QFP (28x28)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	MC68340CAB16E	MC683 Series

Additional Interfaces	USART	GCI, ISDN, NMSI, SCPI, IDL, PCM, SMC, SCC, SPI, USART
Co-Processors/DSP	-	RISC CPM, Communications, CPM
Core Processor	CPU32	M68000, CPU32+, CPU32
Ethernet	-	10 Mbps
Graphics Acceleration	False	False
Mounting Type	Surface Mount	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core	1 - 32 Bit
Number of Cores/Bus Width	-	8 Bit
Number of Cores/Bus Width	-	1
Number of Cores/Bus Width	-	16 Bit
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Package / Case	144-BQFP	144-LQFP, 357-BBGA, 144-BQFP
RAM Controllers	DRAM	DRAM
Speed	16 MHz	16 - 33 MHz
Supplier Device Package	144-QFP (28x28)	144-LQFP (20x20), 357-PBGA (25x25), 144-QFP (28x28)
Voltage - I/O	5 V	3.3 - 5 V

IC MPU M683XX 33MHZ 144LQFP

Part	Speed	Additional Interfaces	Voltage - I/O	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Number of Cores/Bus Width [Min] [custom]	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [Max] [custom]	Package / Case	RAM Controllers	Core Processor	Co-Processors/DSP	Mounting Type	Number of Cores/Bus Width	Ethernet
Freescale Semiconductor MC68302AG33C	33 MHz	GCI, IDL, ISDN, NMSI, PCM, SCPI	5 V	144-LQFP (20x20)	70 °C	0 °C	8 Bit	1	16 Bit	144-LQFP	DRAM	M68000	Communications, RISC CPM	Surface Mount
Freescale Semiconductor MC68360ZQ25VL	25 MHz	SCC, SMC, SPI	3.3 V	357-PBGA (25x25)	70 °C	0 °C				357-BBGA	DRAM	CPU32+	Communications, CPM	Surface Mount	1 Core, 32 Bit	10 Mbps
Freescale Semiconductor MC68360VR25VL	25 MHz	SCC, SMC, SPI	3.3 V	357-PBGA (25x25)	70 °C	0 °C				357-BBGA	DRAM	CPU32+	Communications, CPM	Surface Mount	1 Core, 32 Bit	10 Mbps
Freescale Semiconductor MC68360CZQ25L	25 MHz	SCC, SMC, SPI	5 V	357-PBGA (25x25)	85 °C	-40 °C				357-BBGA	DRAM	CPU32+	Communications, CPM	Surface Mount	1 Core, 32 Bit	10 Mbps
Freescale Semiconductor MC68340CAB16E	16 MHz	USART	5 V	144-QFP (28x28)	85 °C	-40 °C				144-BQFP	DRAM	CPU32		Surface Mount	1 Core, 32 Bit
