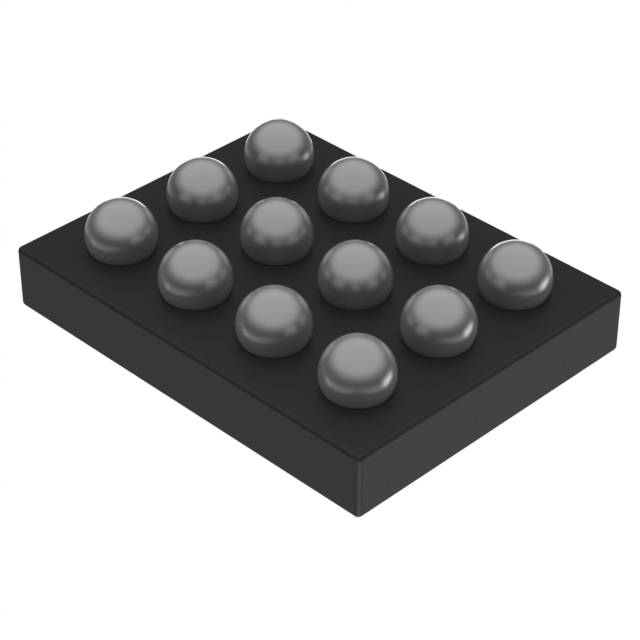

AP72250CJ12-EVM
ActiveDiodes Inc
IC REG BOOST ADJ 4.7A WLB1713
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AP72250CJ12-EVM
ActiveDiodes Inc
IC REG BOOST ADJ 4.7A WLB1713
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AP72250CJ12-EVM |
|---|---|
| Current - Output | 4.7 A |
| Frequency - Switching | 900 kHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 12-XFBGA, WLBGA |
| Supplier Device Package | X1-WLB1713-12 |
| Synchronous Rectifier | True |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 0.6 V |
| Voltage - Output (Max) [Max] | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 69.91 | |
Description
General part information
AP72250 Series
Boost Switching Regulator IC Positive Adjustable 1.7V 1 Output 4.7A (Switch) 12-XFBGA, WLBGA
