Specification	RT061823SNH03SS-K

Applications	Automation, Aerospace, Telecom, Transportation, Industrial
Backshell Material	Zinc Die Cast
Cable Opening (Max)	0.551 in
Cable Opening (Min)	0.394 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating	13 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Polyamide, Nylon 6/6, PA66
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	23
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Plating	Nickel
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert (Maximum)	23
Shell Size - Insert (Minimum)	18
Shielding	Shielded
Termination	Crimp
Voltage Rating	250 V

RT061823 Series

Part	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Shell Material	Mounting Type	Housing Color	Shell Finish	Orientation	Features	Contact Type	Contact Size	Type	Material Flammability Rating	Shielding	Fastening Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Number of Positions	Note	Contact Shape	Insert Material	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Cable Opening (Max)	Cable Opening (Min)	Contact Material	Plating	Backshell Material	Color	Primary Material	Applications	Contact Finish - Mating	Termination	Current Rating	Contact Finish Thickness - Mating	Includes	Includes Total Count	Voltage Rating (Type)
McGill Microwave Systems RT061823PNH	Dust Tight Waterproof	IP67	Plug Housing	Zinc Alloy	Free Hanging (In-Line)	Silver	Nickel	N (Normal)	Coupling Nut	Crimp	16 S	For Male Pins	UL94 V-0	Shielded	Bayonet Lock	23	18	23	Contacts Not Included	Circular	Thermoplastic	-40 °C	105 °C

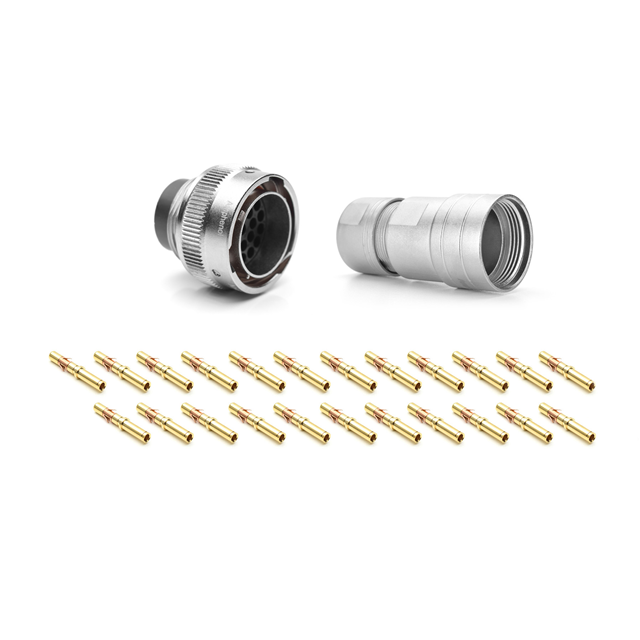

McGill Microwave Systems RT061823PNH03SS-K	Dust Tight Water Resistant Waterproof	IP67 IP69K	Male Pins Plug	Zinc Die Cast	Free Hanging (In-Line)		Nickel	N (Normal)	Backshell Coupling Nut				UL94 V-0	Shielded	Bayonet Lock	23	18	23			Nylon 6/6 PA66 Polyamide	-40 °C	105 °C	250 V	0.551 in	0.394 in	Brass	Nickel	Zinc Die Cast	Silver	Metal	Aerospace Automation Industrial Telecom Transportation	Gold	Crimp	13 A	Flash

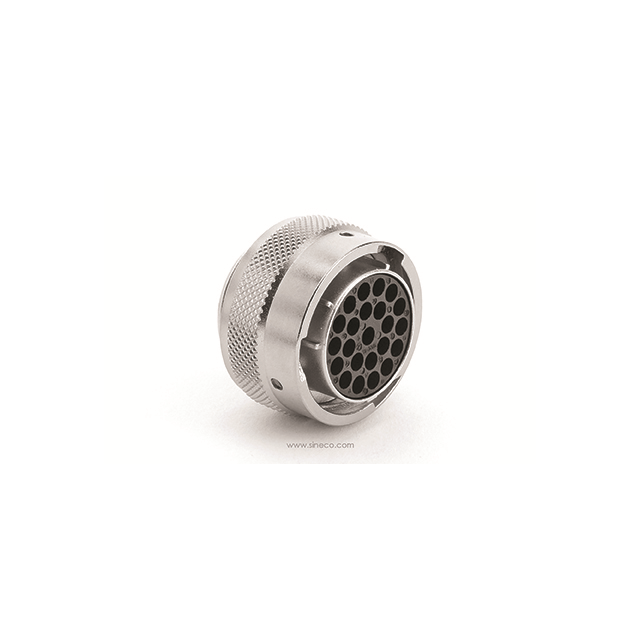

McGill Microwave Systems RT061823SNH03SS-K	Dust Tight Water Resistant Waterproof	IP67 IP69K	Female Sockets Plug	Zinc Die Cast	Free Hanging (In-Line)		Nickel	N (Normal)	Backshell Coupling Nut				UL94 V-0	Shielded	Bayonet Lock	23	18	23			Nylon 6/6 PA66 Polyamide	-40 °C	105 °C	250 V	0.551 in	0.394 in	Brass	Nickel	Zinc Die Cast	Silver	Metal	Aerospace Automation Industrial Telecom Transportation	Gold	Crimp	13 A	Flash
McGill Microwave Systems RT061823SNH03	Dust Tight Waterproof	IP67	Plug Housing	Zinc Alloy	Free Hanging (In-Line)	Silver	Nickel	N (Normal)	Coupling Nut	Crimp	16 S	For Female Sockets	UL94 V-0	Shielded	Bayonet Lock	23	18	23	Contacts Not Included	Circular	Thermoplastic	-40 °C	125 °C														Connector Gasket O-Ring	3 pcs
McGill Microwave Systems RT061823SNHEC03	Dust Tight Waterproof	IP67	Plug Housing	Zinc Alloy	Free Hanging (In-Line)	Silver	Nickel	N (Normal)	Coupling Nut	Crimp	16 S	For Female Sockets	UL94 V-0	Shielded	Bayonet Lock	23	18	23	Contacts Not Included	Circular	Thermoplastic	-40 °C	125 °C								Metal
McGill Microwave Systems RT061823SNH-K	Dust Tight Waterproof	IP67	Female Sockets Plug	Zinc Die Cast	Free Hanging (In-Line)		Nickel	N (Normal)							Bayonet Lock	23	18	23				-40 °C	105 °C	250 V						Silver	Metal		Gold	Crimp	13 A	Flash			DC

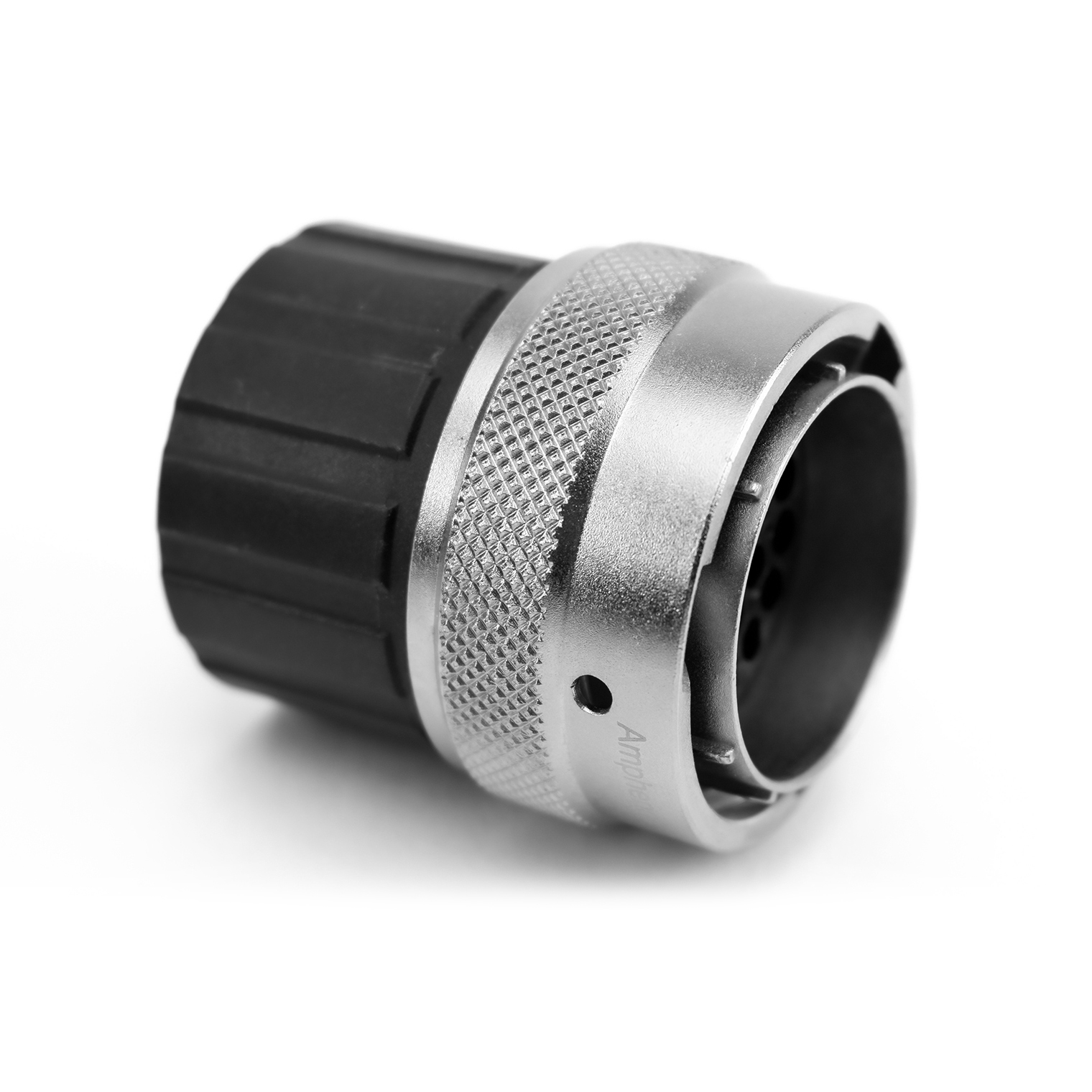

McGill Microwave Systems RT061823PNHEC03	Dust Tight Waterproof	IP67	Plug Housing	Zinc Alloy	Free Hanging (In-Line)	Silver	Nickel	N (Normal)	Coupling Nut	Crimp	16 S	For Male Pins	UL94 V-0	Shielded	Bayonet Lock	23	18	23	Contacts Not Included	Circular	Thermoplastic	-40 °C	125 °C								Metal

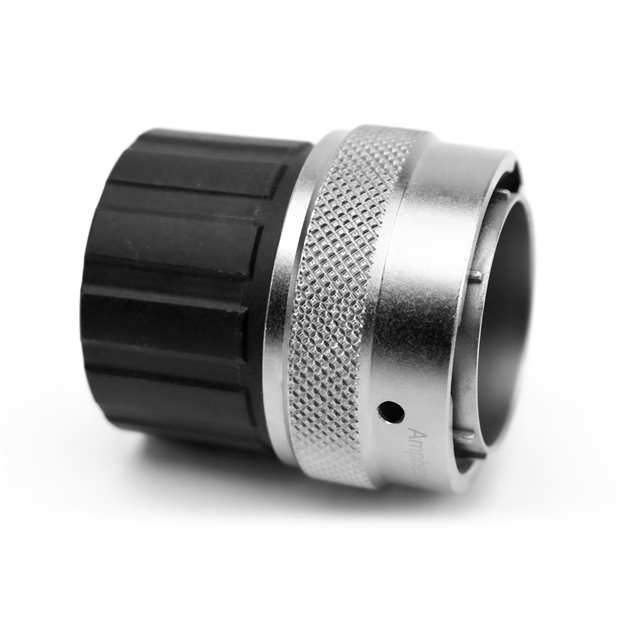

McGill Microwave Systems RT061823SNHEC	Dust Tight Waterproof	IP67	Plug Housing	Zinc Alloy	Free Hanging (In-Line)	Silver	Nickel	N (Normal)	Backshell Coupling Nut	Crimp	16 S	For Female Sockets	UL94 V-0	Shielded	Bayonet Lock	23	18	23	Contacts Not Included	Circular	Thermoplastic	-40 °C	105 °C
