Description
General part information
BW25A Series

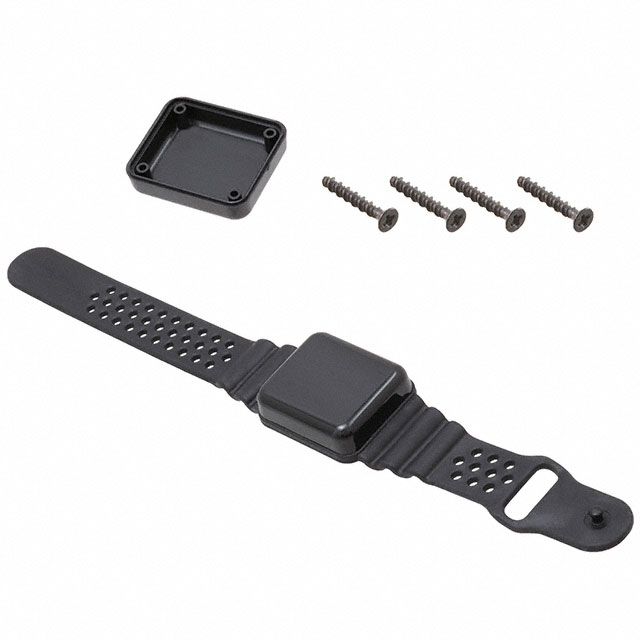

Case Plastic, Polycarbonate Black Cover Included 1.740" L x 1.510" W (44.20mm x 38.35mm) X 0.800" (20.32mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | BW25ABKASBK |
|---|---|
| Area (L x W) | 2.63 in² |
| Color | Black |
| Container Type | Case |
| Design | Cover Included |
| Features | PCB Supports, Waterproof |
| Height | 0.8 in |
| Material | Polycarbonate, Plastic |
| Material Flammability Rating | UL94 V-0 |
| Size / Dimension Length | 1.74 in |
| Size / Dimension Width | 1.51 in |
