438-023-000-112

Active

EDAC Inc.

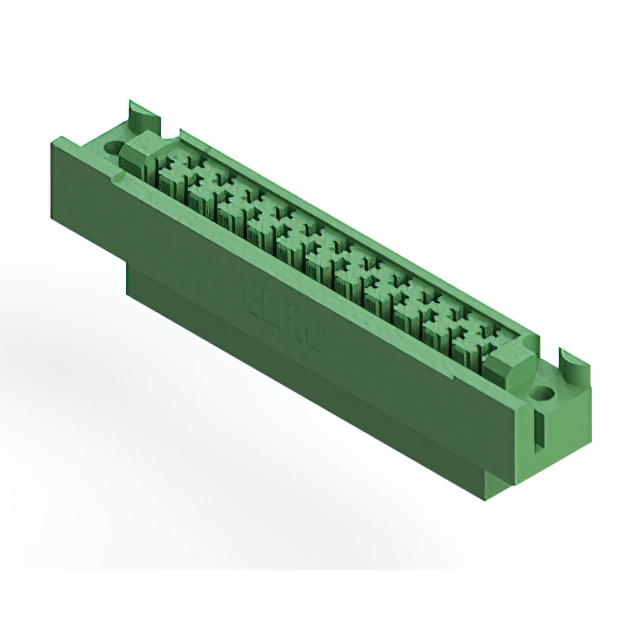

CONN CARDEDGE HSG 23POS .200 GRN

Search across all available documentation for this part.

Active

EDAC Inc.

CONN CARDEDGE HSG 23POS .200 GRN

Technical Specifications

Parameters and characteristics for this part

Specification	438-023-000-112

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Green
Flange Feature	3.25 mm
Flange Feature	0.128 in
Material - Insulation	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Note	Contacts Not Included
Number of Positions	23
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm

Part	Contact Material	Termination	Flange Feature	Flange Feature	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Card Thickness	Card Thickness	Color	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Number of Rows	Contact Finish	Material - Insulation	Note	Material Flammability Rating
EDAC Inc. 438-023-541-122	Copper Alloy	Wire Wrap	3.25 mm	0.128 in	23	0.2 in	5.08 mm	Panel Mount Through Hole	0.093 in	2.36 mm	Green	10 Áin	0.25 Ám	2	Female	125 °C	-65 ░C	Non Specified - Dual Edge	2	Gold	Diallyl Phthalate (DAP)
EDAC Inc. 438-023-000-112			3.25 mm	0.128 in	23	0.2 in	5.08 mm		0.062 in	1.57 mm	Green					125 °C	-65 ░C	Non Specified - Dual Edge			Polyphenylene Sulfide (PPS)	Contacts Not Included	UL94 V-0
EDAC Inc. 438-023-520-122	Copper Alloy	Solder	3.25 mm	0.128 in	23	0.2 in	5.08 mm	Panel Mount Through Hole	0.093 in	2.36 mm	Green	10 Áin	0.25 Ám	2	Female	125 °C	-65 ░C	Non Specified - Dual Edge	2	Gold	Diallyl Phthalate (DAP)
EDAC Inc. 438-023-520-112	Copper Alloy	Solder	3.25 mm	0.128 in	23	0.2 in	5.08 mm	Panel Mount Through Hole	0.062 in	1.57 mm	Green	10 Áin	0.25 Ám	2	Female	125 °C	-65 ░C	Non Specified - Dual Edge	2	Gold	Diallyl Phthalate (DAP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 8.67

General part information

23 Position Card Edge Connector Housing Green 0.200" (5.08mm)
