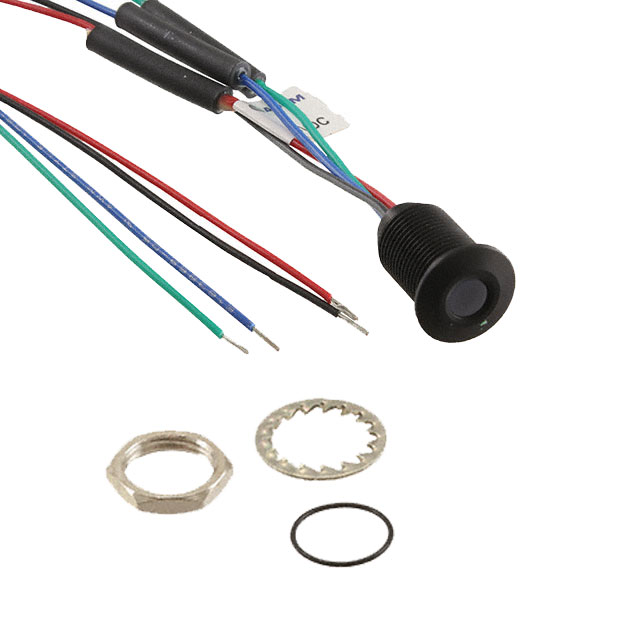

Q10F5ANZZRGB24ECA

Active

APEM

MULTICOLOUR PANEL INDICATORS, RED, GREEN, BLUE, 10 MM, R 20MA, G 20MA, B 20MA

Search across all available documentation for this part.

Active

APEM

MULTICOLOUR PANEL INDICATORS, RED, GREEN, BLUE, 10 MM, R 20MA, G 20MA, B 20MA

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Panel Cutout Dimensions	Panel Cutout Dimensions	Termination Style	Voltage	Type	Lamp Color	Viewing Angle	Current [custom]	Current [custom]	Current [custom]	Lens Size [diameter]	Lens Transparency	Panel Cutout Shape	Ratings	Lens Color
APEM Q10F5ANZZRGB24ECA	IP67	10 mm	0.394 in	Wire Leads - 7.87" (200.00mm)	24 V	LED	Blue Green Red	60 °	20 mA	20 mA	20 mA	7.8 mm	Diffused	Round	DC	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red, Green, Blue (RGB) Diffused 60° 24V 20mA Red, 20mA Green, 20mA Blue Wire Leads - 7.87" (200.00mm)
