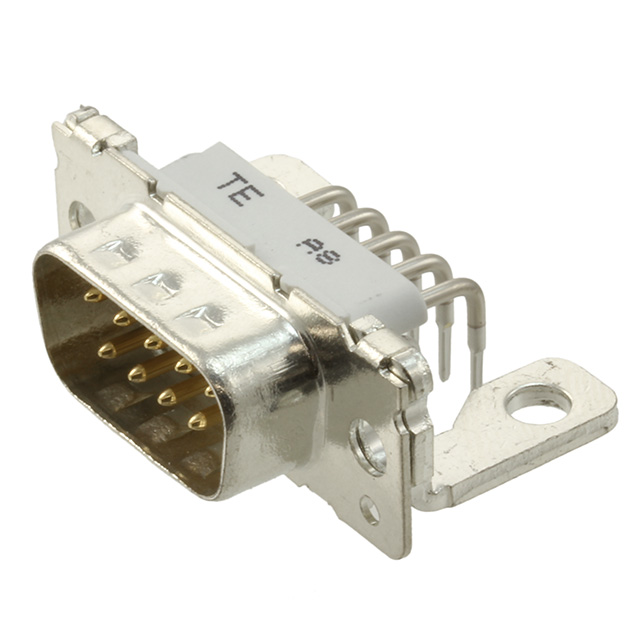

2-1393480-1

TE Connectivity Raychem Cable Protection

V23529B1121C209=SUB D STIFTLEI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-1393480-1

TE Connectivity Raychem Cable Protection

V23529B1121C209=SUB D STIFTLEI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-1393480-1

Color	Gray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Type	Signal
Current Rating (Amps)	2.2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

1393480 Series

Part	Contact Material	Connector Style	Material Flammability Rating	Contact Finish	Connector Type	Contact Type	Number of Rows	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Mounting Type	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Current Rating (Amps)	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing	Shell Size, Connector Layout
TE Connectivity Raychem Cable Protection 5-1393480-4	Copper Alloy	D-Sub	UL94 V-0	Gold	Male Pins Plug	Signal	2	Solder	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	Female Screwlock (4-40) Mating Side	B DB	3	Gray	2.2 A
TE Connectivity Raychem Cable Protection 2-1393480-1		D-Sub		Gold	Male Pins Plug	Signal	2	Solder	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	Housing/Shell (Unthreaded)	DE E	1	Gray	2.2 A	Grounding Indents	9	0.51 µm	20 µin
TE Connectivity Raychem Cable Protection 4-1393480-1	Copper Alloy	D-Sub	UL94 V-0	Gold	Male Pins Plug	Signal	2	Solder			Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	Housing/Shell (4-40)			Gray		Grounding Indents Mounting Brackets	15			9.43 mm	0.371 in	2
TE Connectivity Raychem Cable Protection 3-1393480-3		D-Sub			Male Pins Plug	Signal	2	Solder				Through Hole Right Angle	Housing/Shell (M3)					Grounding Indents	15					2
TE Connectivity Raychem Cable Protection 3-1393480-7	Copper Alloy	D-Sub	UL94 V-0	Gold	Receptacle Female Sockets	Signal	2	Solder			Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	Housing/Shell (4-40)			Gray			15			9.43 mm	0.371 in	2
TE Connectivity Raychem Cable Protection 4-1393480-2	Copper Alloy	D-Sub	UL94 V-0	Gold	Male Pins Plug	Signal	2	Solder			Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	Housing/Shell (4-40)	B DB	3	Gray		Grounding Indents Mounting Brackets				9.43 mm	0.371 in
TE Connectivity Raychem Cable Protection 1-1393480-7	Copper Alloy	D-Sub	UL94 V-0	Gold	Receptacle Female Sockets	Signal	2	Solder			Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	Housing/Shell (Unthreaded)	DE E	1	Gray			9			9.43 mm	0.371 in
TE Connectivity Raychem Cable Protection 3-1393480-2		D-Sub			Male Pins Plug	Signal	2	Solder				Through Hole Right Angle	Housing/Shell (M3)	DE E	1			Grounding Indents	9
TE Connectivity Raychem Cable Protection 4-1393480-0	Copper Alloy	D-Sub	UL94 V-0	Gold	Male Pins Plug	Signal	2	Solder			Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	Housing/Shell (4-40)	DE E	1	Gray		Grounding Indents Mounting Brackets	9			9.43 mm	0.371 in
TE Connectivity Raychem Cable Protection 8-1393480-6	Phosphor Bronze	D-Sub	UL94 V-0	Gold	Male Pins Plug	Signal	2	Solder	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Polyester	Through Hole Right Angle	Housing/Shell (4-40)			Black	2.2 A	Board Lock Ground Strap Grounding Indents	15	0.76 Ám	30 Áin	9.43 mm	0.371 in	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 5.27

Description

General part information

1393480 Series

9 Position D-Sub Plug, Male Pins Connector
