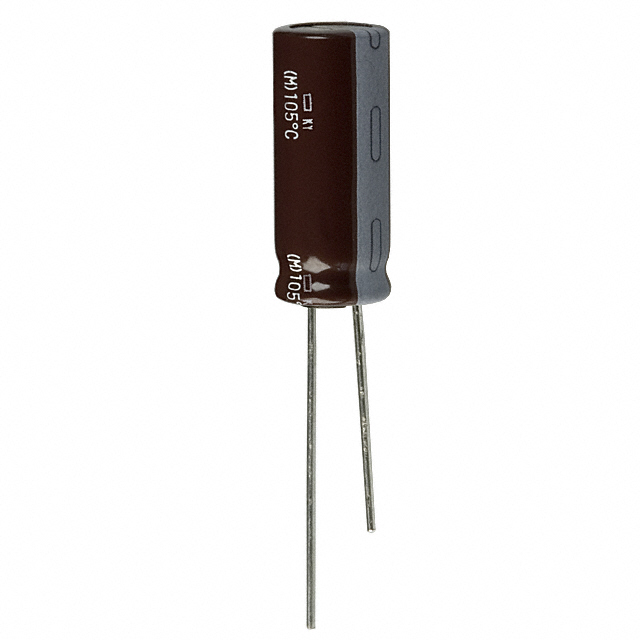

EKY-6R3ELL222MJ25S

Active

Chemi-Con

CAP ALUM 2200UF 20% 6.3V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-6R3ELL222MJ25S

Active

Chemi-Con

CAP ALUM 2200UF 20% 6.3V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.82
		10	$ 0.59
		50	$ 0.52
		100	$ 0.42
		500	$ 0.34
		1000	$ 0.30
		3000	$ 0.28
		5000	$ 0.26

Description

General part information

EKY-6R3E Series

2200 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKY-6R3ELL222MJ25S	EKY-6R3E Series

Applications	General Purpose	General Purpose
Capacitance	2200 µF	3.3 - 3900 µF
Height - Seated (Max)	-	14 mm
Height - Seated (Max)	-	0.492 - 0.846 "
Height - Seated (Max)	-	12.5 - 21.5 mm
Height - Seated (Max) [Max] [z]	1.043 in	0.512 - 16.51 "
Height - Seated (Max) [Max] [z]	26.5 mm	13 - 36.5 mm
Impedance	42 mOhms	20 - 220 mOhms
Lead Spacing	5 mm	2.5 - 7.5 mm
Lead Spacing	0.197 in	0.098 - 0.295 in
Lifetime @ Temp.	6000 Hrs	4000 - 8000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	1.65 A	1.45 - 865 mA
Ripple Current @ Low Frequency	1.2375 A	1.2375 - 870 mA
Size / Dimension [diameter]	10 mm	6.3 - 18 mm
Size / Dimension [diameter]	0.394 in	0.248 - 0.709 "
Tolerance	20 %	20 %
Voltage - Rated	6.3 V	6.3 V

EKY-6R3E Series

CAP ALUM 680UF 20% 6.3V RADIAL

Part	Ripple Current @ High Frequency	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Tolerance	Polarization	Applications	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Voltage - Rated	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKY-6R3ELL681MHB5D	640 mA	680 µF	0.315 "	8 mm	6000 Hrs	20 %	Polar	General Purpose	130 mOhms	-40 °C	105 ░C	3.5 mm	0.138 in	6.3 V	Through Hole	13 mm	0.512 "	384 mA	Radial, Can
Chemi-Con EKY-6R3ELL392MM15S	2.21 A	3900 µF	0.709 "	18 mm	8000 Hrs	20 %	Polar	General Purpose	43 mOhms	-40 °C	105 ░C	7.5 mm	0.295 in	6.3 V	Through Hole	16.5 mm	16.51 mm	1.6575 A	Radial, Can
Chemi-Con EKY-6R3ETD821MJC5S	865 mA	820 µF	0.394 in	10 mm	6000 Hrs	20 %	Polar	General Purpose	80 mOhms	-40 °C	105 ░C	5 mm	0.197 in	6.3 V	Through Hole			519 mA	Radial, Can	14 mm	0.551 "
Chemi-Con EKY-6R3ELL821MJC5S	865 mA	820 µF	0.394 in	10 mm	6000 Hrs	20 %	Polar	General Purpose	80 mOhms	-40 °C	105 ░C	5 mm	0.197 in	6.3 V	Through Hole			519 mA	Radial, Can	14 mm	0.551 "
Chemi-Con EKY-6R3ELL222MJ25S	1.65 A	2200 µF	0.394 in	10 mm	6000 Hrs	20 %	Polar	General Purpose	42 mOhms	-40 °C	105 ░C	5 mm	0.197 in	6.3 V	Through Hole	26.5 mm	1.043 in	1.2375 A	Radial, Can
Chemi-Con EKY-6R3ELL182MK15S	1.45 A	1800 µF	0.492 in	12.5 mm	8000 Hrs	20 %	Polar	General Purpose	49 mOhms	-40 °C	105 ░C	5 mm	0.197 in	6.3 V	Through Hole	16.5 mm	16.51 mm	870 mA	Radial, Can
Chemi-Con EKY-6R3ELL332MK20S		3.3 mF	0.492 in	12.5 mm	8000 Hrs	20 %	Polar	General Purpose	35 mOhms	-40 °C	105 ░C	5 mm	0.197 in	6.3 V	Through Hole			1.425 A	Radial, Can		0.846 in	21.5 mm
Chemi-Con EKY-6R3ELL562MK35S	2.88 A	5.6 mF	0.492 in	12.5 mm	8000 Hrs	20 %	Polar	General Purpose	20 mOhms	-40 °C	105 ░C	5 mm	0.197 in	6.3 V	Through Hole	36.5 mm	1.437 in	2.448 A	Radial, Can
Chemi-Con EKY-6R3ETD331MF11D	340 mA	330 µF	0.248 in	6.3 mm	4000 Hrs	20 %	Polar	General Purpose	220 mOhms	-40 °C	105 ░C	2.5 mm	0.098 in	6.3 V	Through Hole			170 mA	Radial, Can		0.492 in	12.5 mm
