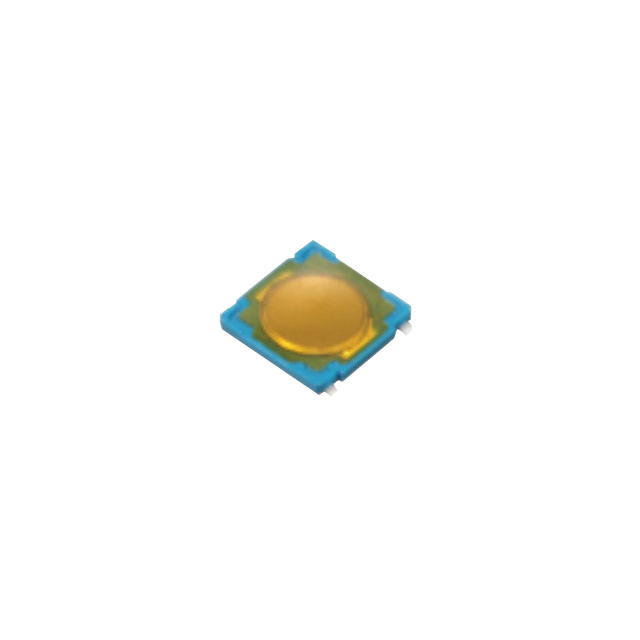

223BM2VAAR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	223BM2VAAR

Actuator Height off PCB, Vertical [z]	0.55 mm
Actuator Orientation	Top Actuated
Actuator Type	Snap Dome
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	4.5 mm
Outline [y]	4.5 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mounting Type	Contact Rating @ Voltage	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Features	Illumination	Actuator Orientation	Actuator Type	Switch Travel	Switch Function	Termination Style	Outline [x]	Outline [y]	Mechanical Life
CTS Electrocomponents 223BM2VAAR	Surface Mount	0.05 A, 12 VDC	SPST-NO	85 °C	-40 °C	0.55 mm	Tactile Feedback	Non-Illuminated	Top Actuated	Snap Dome	0.2 mm	Off-Mom	Gull Wing	4.5 mm	4.5 mm	1000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	14000	$ 0.11

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
