ATS-TI1 Series

Part	Material Finish	Thermal Resistance	Width	Material	Length	Type	Shape	Fin Height	Attachment Method
Advanced Thermal Solutions Inc. ATS-TI10P-519-C1-R1	Black Anodized	2.2 °C/W	1.417 in	Aluminum	3.071 in	Top Mount	Fins Rectangular	1.402 in	Bolt On
Advanced Thermal Solutions Inc. ATS-TI10P-525-C1-R0
Advanced Thermal Solutions Inc. ATS-TI10P-521-C1-R0	Black Anodized	8.5 °C/W	0.547 in	Aluminum	1.969 in	Top Mount	Fins Rectangular	0.984 in	Bolt On

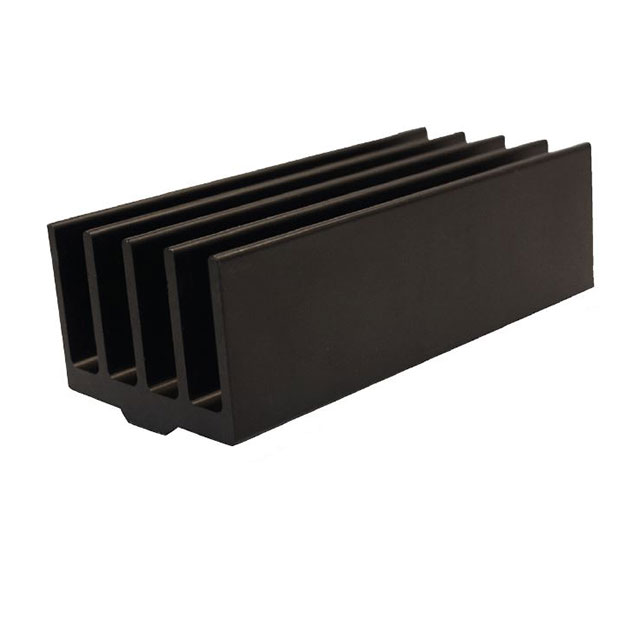

Advanced Thermal Solutions Inc. ATS-TI10P-518-C1-R1	Black Anodized	3 °C/W	1.417 in	Aluminum	3.071 in	Top Mount	Fins Rectangular	1.106 in	Bolt On
Advanced Thermal Solutions Inc. ATS-TI10P-519-C1-R2	Black Anodized	2.2 °C/W	1.417 in	Aluminum	3.071 in	Top Mount	Fins Rectangular	1.402 in	Bolt On
Advanced Thermal Solutions Inc. ATS-TI1OP-519-C1-R3	Black Anodized	2.2 °C/W	1.417 in	Aluminum	3.071 in	Top Mount	Fins Rectangular	1.402 in	Bolt On
Advanced Thermal Solutions Inc. ATS-TI1OP-563-C1-R0	Black Anodized	2.7 °C/W	1.417 in	Aluminum	2.126 in	Top Mount	Fins Rectangular	1.402 in	Bolt On
Advanced Thermal Solutions Inc. ATS-TI1OP-518-C1-R0	Black Anodized	3 °C/W	1.417 in	Aluminum	3.071 in	Top Mount	Fins Rectangular	1.106 in	Bolt On
Advanced Thermal Solutions Inc. ATS-TI10P-521-C2-R0	Black Anodized	8.5 °C/W	0.547 in	Aluminum	1.969 in	Top Mount	Fins Rectangular	0.984 in	Bolt On
Advanced Thermal Solutions Inc. ATS-TI1OP-519-C1-R0	Black Anodized	2.2 °C/W	1.417 in	Aluminum	3.071 in	Top Mount	Fins Rectangular	1.402 in	Bolt On
