2-964286-1
ActiveTE Connectivity AMP Connectors

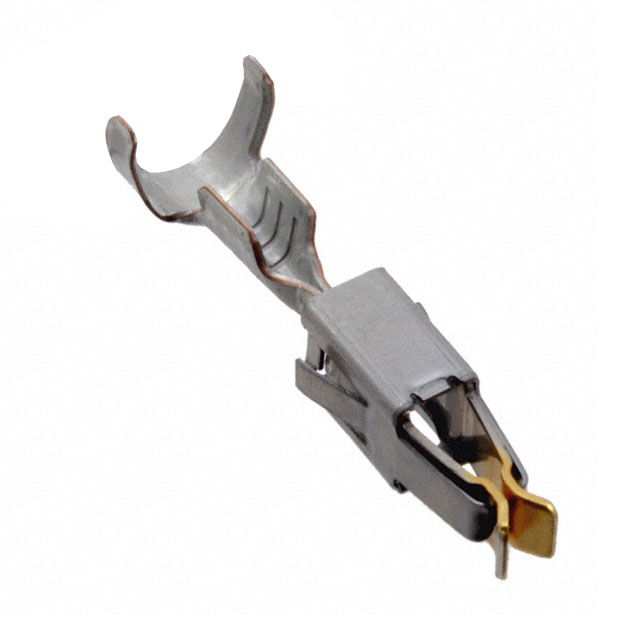

CONN SOCKET 17-20AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-964286-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 17-20AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-964286-1 | 964286 Series |
|---|---|---|
| Contact Finish | Gold | Tin, Gold |
| Contact Finish Thickness | 31.5 µin | 31.5 µin |
| Contact Finish Thickness | 0.8 µm | 0.8 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Power | Power |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17 AWG | 17 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 3500 | $ 0.34 | ||
| 7000 | $ 0.31 | |||
| 10500 | $ 0.29 | |||
964286 Series
CONN SOCKET 17-20AWG CRIMP TIN
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Contact Finish | Type | Contact Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 964286-2 | 17 AWG | 20 AWG | Socket | Tin | Power | Crimp | ||
TE Connectivity AMP Connectors 2-964286-1 | 17 AWG | 20 AWG | Socket | Gold | Power | Crimp | 31.5 µin | 0.8 µm |
TE Connectivity AMP Connectors 6-964286-6 | 17 AWG | 20 AWG | Socket | Gold | Power | Crimp | 31.5 µin | 0.8 µm |
Description
General part information
964286 Series
Socket Contact Gold 17-20 AWG Crimp Power
