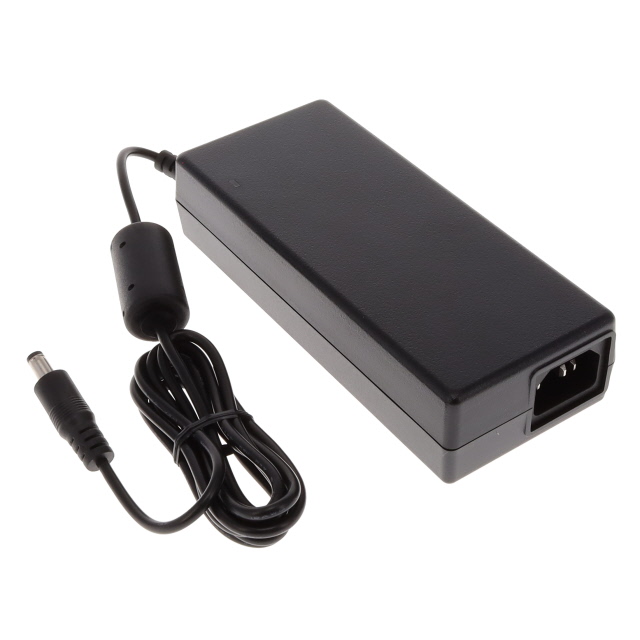

PPL90U-480

Active

Phihong USA

AC/DC DESKTOP ADAPTER 48V 90W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC DESKTOP ADAPTER 48V 90W

Technical Specifications

Parameters and characteristics for this part

Specification	PPL90U-480

Applications	ITE (Commercial)
Approval Agency	IEC, cULus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.88 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	10 mm
Polarization	Positive Center
Power (Watts)	90 W
Region Utilized	International
Size / Dimension [x]	5.94 in
Size / Dimension [x]	151 mm
Size / Dimension [y]	64 mm
Size / Dimension [y]	2.52 "
Size / Dimension [z]	36 mm
Size / Dimension [z]	1.42 in
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V

Part	Output Connector [z]	Output Connector [diameter]	Output Connector	Standard Number	Efficiency	Region Utilized	Polarization	Input Type	Cord Length	Cord Length	Current - Output (Max) [Max]	Power (Watts)	No Load Power Consumption [Max]	Operating Temperature [Max]	Voltage - Output	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Approval Agency	Input Connector	Form	Current - Output (Max)	Cord Length
Phihong USA PPL90U-480	10 mm	2.1 mm 5.5 mm	Barrel Plug	62368-1	CoC Tier 2 Level VI	International	Positive Center	Cord	1.5 m	59 in	1.88 A	90 W	150 mW	40 °C	48 V	5.94 in	151 mm	36 mm	64 mm	1.42 in	2.52 "	90 VAC	264 VAC	ITE (Commercial)	cULus IEC	IEC 320-C14	Desktop (Class I)
Phihong USA PPL90U-560	10 mm	2.1 mm 5.5 mm	Barrel Plug	62368-1	CoC Tier 2 Level VI	International	Positive Center	Cord	1.5 m	59 in	1.6 A	90 W	150 mW	40 °C	56 V	5.94 in	151 mm	36 mm	64 mm	1.42 in	2.52 "	90 VAC	264 VAC	ITE (Commercial)	cULus IEC	IEC 320-C14	Desktop (Class I)
Phihong USA PPL90U-120	10 mm	2.1 mm 5.5 mm	Barrel Plug	62368-1	CoC Tier 2 Level VI	International	Positive Center	Cord	47.2 in			84 W	150 mW	40 °C	12 V	5.94 in	151 mm	36 mm	64 mm	1.42 in	2.52 "	90 VAC	264 VAC	ITE (Commercial)	cULus IEC	IEC 320-C14	Desktop (Class I)	7 A	1.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
