1-1241370-3
ActiveTE Connectivity AMP Connectors

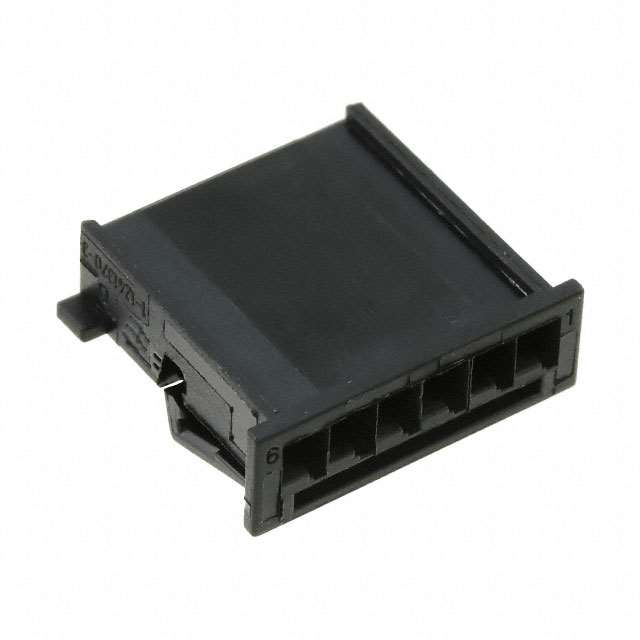

CONN SOCKET HSG 6POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1241370-3
ActiveTE Connectivity AMP Connectors
CONN SOCKET HSG 6POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1241370-3 | 1241370 Series |
|---|---|---|
| - | - | |
| Color | Black | Black |
| Connector Type | Socket | Socket |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Retainer | Retainer |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.61 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.36 | |||
| 2500 | $ 0.35 | |||
1241370 Series
CONN SOCKET HSG 6POS 2.54MM
| Part | Features | Pitch [x] | Pitch [x] | Contact Type | Note | Number of Positions | Mounting Type | Insulation Material | Color | Number of Rows | Connector Type | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1241370-3 | Retainer | 2.54 mm | 0.1 in | Female Socket | Contacts Not Included | 6 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | Black | 1 | Socket | Locking Ramp | -40 °C | 120 °C | Crimp |
TE Connectivity AMP Connectors 2-1241370-3 |
Description
General part information
1241370 Series
6 Rectangular Connectors - Housings Socket Black 0.100" (2.54mm)
