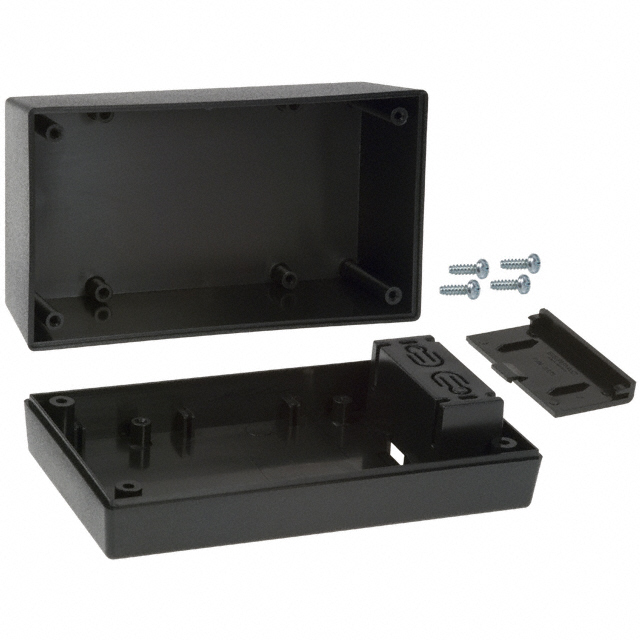

253I,BK

Active

Serpac

BOX ABS BLACK 5.62"L X 3.25"W

Search across all available documentation for this part.

Documents253

Active

Serpac

BOX ABS BLACK 5.62"L X 3.25"W

Documents253

Technical Specifications

Parameters and characteristics for this part

Specification	253I,BK

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in

Part	Color	Ratings	Features	Features	Material Flammability Rating	Height [z]	Height [z]	Design	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material	Thickness	Thickness	Area (L x W)	Area (L x W)
Serpac 253I,GY	Gray	IP40 NEMA 1	Battery Compartment PCB Supports	9 V	UL94 HB	63.5 mm	2.5 in	Hand Held Split Sides	Box	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	2.54 mm	0.1 in	118 cm²	18.3 in²
Serpac 253I,BK	Black	IP40 NEMA 1	Battery Compartment PCB Supports	9 V	UL94 HB	63.5 mm	2.5 in	Hand Held Split Sides	Box	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	2.54 mm	0.1 in	118 cm²	18.3 in²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.42

General part information

Box Plastic, ABS Black Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.500" (63.50mm)
