Specification	52962

Color	Yellow
Contact Finish	Tin
Contact Material	Brass
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter (Max)	0.2 in
Insulation Diameter (Min)	0.105 in
Length - Overall	1.052 in
Length - Ring Center to Termination	0.276 in
Length - Termination	0.601 in
Material - Insulation	PVC, Poly-Vinyl Chloride
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Tongue Inside Opening	0.164 in
Width - Outer Edges	0.375 in
Wire Gauge (AWG) (Max)	12 AWG
Wire Gauge (AWG) (Min)	10 AWG

5296 Series

Part	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Color	Terminal Type	Stud/Tab Size	Length - Overall	Termination	Width - Outer Edges	Features	Mounting Type	Contact Material	Insulation	Contact Finish	Length - Termination	Material - Insulation	Length - Ring Center to Termination	Tongue Inside Opening	Insulation Diameter (Min)	Insulation Diameter (Max)
TE Connectivity AMP Connectors 52962	12 AWG	10 AWG	Yellow	Snap Spring	8 Stud	1.052 in	Crimp	0.375 in	Serrated Termination	Free Hanging (In-Line)	Brass	Insulated	Tin	0.601 in	Poly-Vinyl Chloride PVC	0.276 in	0.164 in	0.105 in	0.2 in

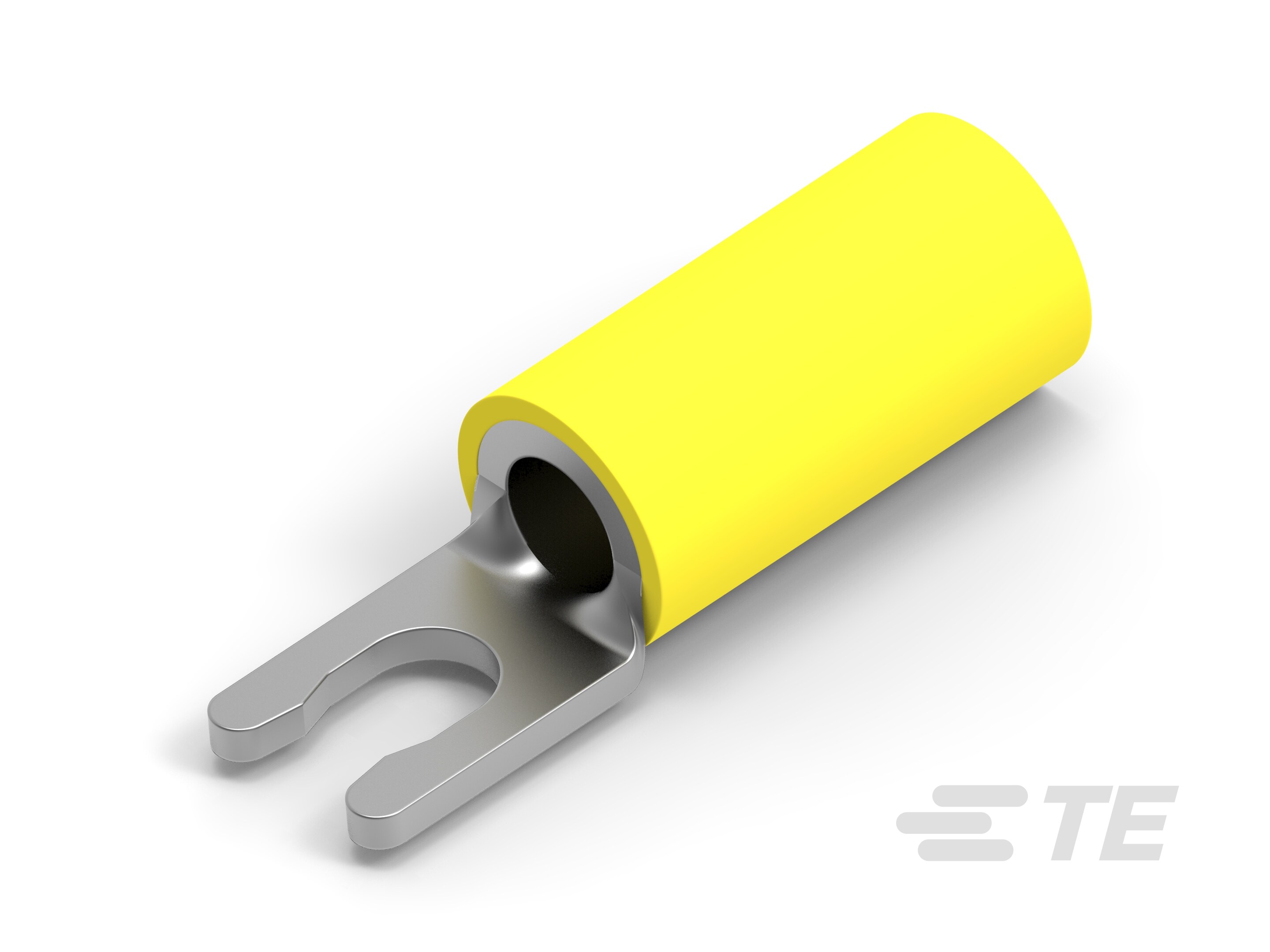

TE Connectivity AMP Connectors 52961	12 AWG	10 AWG	Yellow	Snap Spring	6 Stud	0.959 in	Crimp	0.25 in	Serrated Termination	Free Hanging (In-Line)	Brass	Insulated	Tin	0.601 in	Poly-Vinyl Chloride PVC	0.174 in	0.14 in	0.105 in	0.2 in
