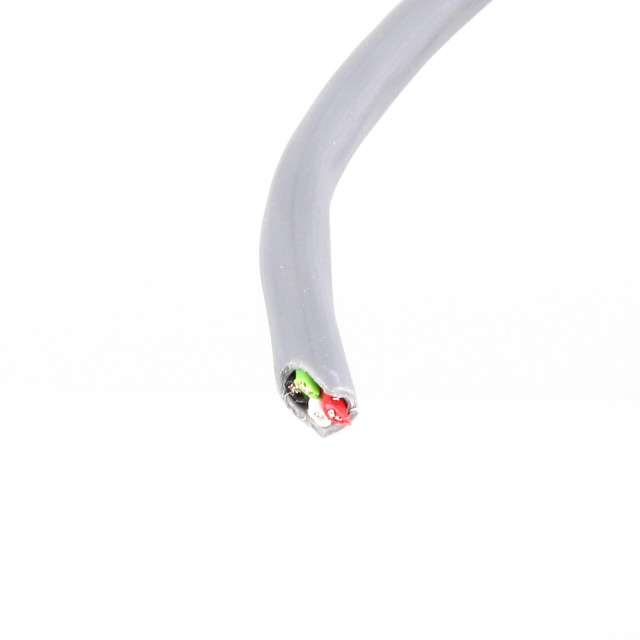

Specification	9444 060100

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	28
Jacket (Insulation) Diameter	0.217 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Chrome
Length	100 ft
Number of Conductors	4
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Usage	Instrumentation, Control, Audio
Wire Gauge	20 AWG

9444 Series

Part	Conductor Strand Count	Conductor Strand Gauge	Conductor Material	Conductor Insulation	Jacket (Insulation) Diameter	Length	Cable Type	Jacket (Insulation) Thickness	Operating Temperature (Min)	Operating Temperature (Max)	Jacket (Insulation) Material	Number of Conductors	Usage	Jacket Color	Wire Gauge	Ratings	Voltage	Length
Belden Inc. 9444 060100	7 Strands	28	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.217 in	100 ft	Conductor Multi	0.032 in	-20 °C	80 °C	Poly-Vinyl Chloride (PVC)	4	Audio Control Instrumentation	Chrome	20 AWG
Belden Inc. 9444 0601000	7 Strands	28	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.217 in	1000 ft	Conductor Multi	0.032 in	-20 °C	80 °C	Poly-Vinyl Chloride (PVC)	4	Audio Control Instrumentation	Chrome	20 AWG	2464 Style UL	300 V
Belden Inc. 9444 0605000	7 Strands	28	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.217 in	5000 ft	Conductor Multi	0.032 in	-20 °C	80 °C	Poly-Vinyl Chloride (PVC)	4	Audio Control Instrumentation	Chrome	20 AWG	2464 Style UL	300 V	Enter Number of Feet in Order Quantity
Belden Inc. 9444 060U1000	7 Strands	28	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.217 in	1000 ft	Conductor Multi	0.032 in	-20 °C	80 °C	Poly-Vinyl Chloride (PVC)	4	Audio Control Instrumentation	Chrome	20 AWG	2464 Style UL	300 V
