6-103916-7 - 6-103916-7

6-103916-7

Active
TE Connectivity AMP Connectors

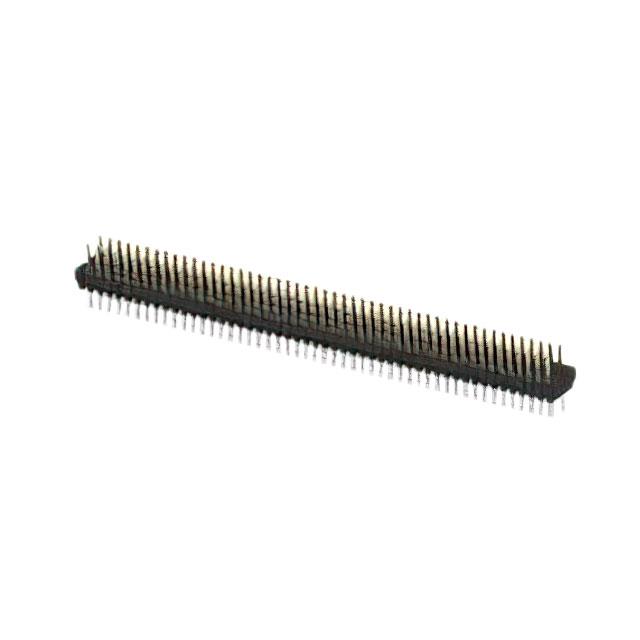

CONN HEADER VERT 100POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
6-103916-7 - 6-103916-7

6-103916-7

Active
TE Connectivity AMP Connectors

CONN HEADER VERT 100POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification6-103916-7103916 Series
ApplicationsMedical, General Purpose, Automotive, TelecommunicationsMedical, General Purpose, Automotive, Telecommunications
Connector TypeHeaderHeader
Contact Finish - MatingGoldGold
Contact Finish - PostTinTin-Lead, Tin
Contact Finish Thickness - Mating30 Áin30 Áin
Contact Finish Thickness - Mating0.76 Ám0.76 Ám
Contact Finish Thickness - Post150 Áin150 Áin
Contact Finish Thickness - Post3.81 Ám3.81 Ám
Contact Length - Mating0.125 in0.125 in
Contact Length - Mating3.18 mm3.18 mm
Contact Length - Post2.54 mm2.54 mm
Contact Length - Post0.1 in0.1 in
Contact MaterialCopper AlloyCopper Alloy
Contact ShapeSquareSquare
Contact TypeMale PinMale Pin
Fastening TypePush-PullPush-Pull
Insulation ColorBlackBlack
Insulation Height0.1 in0.1 in
Insulation Height2.54 mm2.54 mm
Insulation MaterialThermoplasticThermoplastic
Material Flammability RatingUL94 V-0UL94 V-0
Mounting TypeThrough HoleThrough Hole
Number of Positions1008 - 100
Number of Positions LoadedAllAll
Number of Rows22
Operating Temperature [Max]105 ░C105 ░C
Operating Temperature [Min]-65 ░C-65 ░C
Overall Contact Length0.325 in0.325 in
Overall Contact Length8.26 mm8.26 mm
Pitch - Mating0.05 in0.05 in
Pitch - Mating1.27 mm1.27 mm
Row Spacing - Mating [x]2.54 mm2.54 mm
Row Spacing - Mating [x]0.1 in0.1 in
ShroudingUnshroudedUnshrouded
StyleBoard to Board, CableBoard to Board, Cable
TerminationSolderSolder
Voltage Rating30 VAC30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 14.94
16$ 14.63
104$ 12.22
504$ 10.59

103916 Series

CONN HEADER VERT 80POS 1.27MM

PartShroudingOverall Contact LengthOverall Contact LengthMounting TypeConnector TypeContact MaterialContact Finish - MatingContact Finish - PostContact Finish Thickness - PostContact Finish Thickness - PostContact ShapeStyleNumber of Positions LoadedVoltage RatingMaterial Flammability RatingNumber of PositionsContact TypePitch - MatingPitch - MatingContact Finish Thickness - MatingContact Finish Thickness - MatingNumber of RowsInsulation ColorApplicationsFastening TypeContact Length - PostContact Length - PostContact Length - MatingContact Length - MatingOperating Temperature [Min]Operating Temperature [Max]Row Spacing - Mating [x]Row Spacing - Mating [x]Insulation MaterialTerminationInsulation HeightInsulation Height
TE Connectivity AMP Connectors
1-103916-6
Unshrouded
0.325 in
8.26 mm
Through Hole
Header
Copper Alloy
Gold
Tin-Lead
150 Áin
3.81 Ám
Square
Board to Board, Cable
All
30 VAC
UL94 V-0
80
Male Pin
0.05 in
1.27 mm
30 Áin
0.76 Ám
2
Black
Automotive, General Purpose, Medical, Telecommunications
Push-Pull
2.54 mm
0.1 in
0.125 in
3.18 mm
-65 ░C
105 ░C
2.54 mm
0.1 in
Thermoplastic
Solder
0.1 in
2.54 mm
TE Connectivity AMP Connectors
1-103916-3
Unshrouded
0.325 in
8.26 mm
Through Hole
Header
Copper Alloy
Gold
Tin-Lead
150 Áin
3.81 Ám
Square
Board to Board, Cable
All
30 VAC
UL94 V-0
50
Male Pin
0.05 in
1.27 mm
30 Áin
0.76 Ám
2
Black
Automotive, General Purpose, Medical, Telecommunications
Push-Pull
2.54 mm
0.1 in
0.125 in
3.18 mm
-65 ░C
105 ░C
2.54 mm
0.1 in
Thermoplastic
Solder
0.1 in
2.54 mm
TE Connectivity AMP Connectors
5-103916-9
Unshrouded
0.325 in
8.26 mm
Through Hole
Header
Copper Alloy
Gold
Tin
150 Áin
3.81 Ám
Square
Board to Board, Cable
All
30 VAC
UL94 V-0
30
Male Pin
0.05 in
1.27 mm
30 Áin
0.76 Ám
2
Black
Automotive, General Purpose, Medical, Telecommunications
Push-Pull
2.54 mm
0.1 in
0.125 in
3.18 mm
-65 ░C
105 ░C
2.54 mm
0.1 in
Thermoplastic
Solder
0.1 in
2.54 mm
TE Connectivity AMP Connectors
103916-2
Unshrouded
0.325 in
8.26 mm
Through Hole
Header
Copper Alloy
Gold
Tin-Lead
150 Áin
3.81 Ám
Square
Board to Board, Cable
All
30 VAC
UL94 V-0
20
Male Pin
0.05 in
1.27 mm
30 Áin
0.76 Ám
2
Black
Automotive, General Purpose, Medical, Telecommunications
Push-Pull
2.54 mm
0.1 in
0.125 in
3.18 mm
-65 ░C
105 ░C
2.54 mm
0.1 in
Thermoplastic
Solder
0.1 in
2.54 mm
TE Connectivity AMP Connectors
6-103916-1
Unshrouded
0.325 in
8.26 mm
Through Hole
Header
Copper Alloy
Gold
Tin
150 Áin
3.81 Ám
Square
Board to Board, Cable
All
30 VAC
UL94 V-0
40
Male Pin
0.05 in
1.27 mm
30 Áin
0.76 Ám
2
Black
Automotive, General Purpose, Medical, Telecommunications
Push-Pull
2.54 mm
0.1 in
0.125 in
3.18 mm
-65 ░C
105 ░C
2.54 mm
0.1 in
Thermoplastic
Solder
0.1 in
2.54 mm
TE Connectivity AMP Connectors
6-103916-3
Unshrouded
0.325 in
8.26 mm
Through Hole
Header
Copper Alloy
Gold
Tin
150 Áin
3.81 Ám
Square
Board to Board, Cable
All
30 VAC
UL94 V-0
50
Male Pin
0.05 in
1.27 mm
30 Áin
0.76 Ám
2
Black
Automotive, General Purpose, Medical, Telecommunications
Push-Pull
2.54 mm
0.1 in
0.125 in
3.18 mm
-65 ░C
105 ░C
2.54 mm
0.1 in
Thermoplastic
Solder
0.1 in
2.54 mm
TE Connectivity AMP Connectors
103916-9
Unshrouded
0.325 in
8.26 mm
Through Hole
Header
Copper Alloy
Gold
Tin-Lead
150 Áin
3.81 Ám
Square
Board to Board, Cable
All
30 VAC
UL94 V-0
30
Male Pin
0.05 in
1.27 mm
30 Áin
0.76 Ám
2
Black
Automotive, General Purpose, Medical, Telecommunications
Push-Pull
2.54 mm
0.1 in
0.125 in
3.18 mm
-65 ░C
105 ░C
2.54 mm
0.1 in
Thermoplastic
Solder
0.1 in
2.54 mm
TE Connectivity AMP Connectors
5-103916-2
Unshrouded
0.325 in
8.26 mm
Through Hole
Header
Copper Alloy
Gold
Tin
150 Áin
3.81 Ám
Square
Board to Board, Cable
All
30 VAC
UL94 V-0
20
Male Pin
0.05 in
1.27 mm
30 Áin
0.76 Ám
2
Black
Automotive, General Purpose, Medical, Telecommunications
Push-Pull
2.54 mm
0.1 in
0.125 in
3.18 mm
-65 ░C
105 ░C
2.54 mm
0.1 in
Thermoplastic
Solder
0.1 in
2.54 mm
TE Connectivity AMP Connectors
6-103916-7
Unshrouded
0.325 in
8.26 mm
Through Hole
Header
Copper Alloy
Gold
Tin
150 Áin
3.81 Ám
Square
Board to Board, Cable
All
30 VAC
UL94 V-0
100
Male Pin
0.05 in
1.27 mm
30 Áin
0.76 Ám
2
Black
Automotive, General Purpose, Medical, Telecommunications
Push-Pull
2.54 mm
0.1 in
0.125 in
3.18 mm
-65 ░C
105 ░C
2.54 mm
0.1 in
Thermoplastic
Solder
0.1 in
2.54 mm
TE Connectivity AMP Connectors
5-103916-3
Unshrouded
0.325 in
8.26 mm
Through Hole
Header
Copper Alloy
Gold
Tin
150 Áin
3.81 Ám
Square
Board to Board, Cable
All
30 VAC
UL94 V-0
8
Male Pin
0.05 in
1.27 mm
30 Áin
0.76 Ám
2
Black
Automotive, General Purpose, Medical, Telecommunications
Push-Pull
2.54 mm
0.1 in
0.125 in
3.18 mm
-65 ░C
105 ░C
2.54 mm
0.1 in
Thermoplastic
Solder
0.1 in
2.54 mm
TE Connectivity AMP Connectors
6-103916-4
Unshrouded
0.325 in
8.26 mm
Through Hole
Header
Copper Alloy
Gold
Tin
150 Áin
3.81 Ám
Square
Board to Board, Cable
All
30 VAC
UL94 V-0
60
Male Pin
0.05 in
1.27 mm
30 Áin
0.76 Ám
2
Black
Automotive, General Purpose, Medical, Telecommunications
Push-Pull
2.54 mm
0.1 in
0.125 in
3.18 mm
-65 ░C
105 ░C
2.54 mm
0.1 in
Thermoplastic
Solder
0.1 in
2.54 mm

Description

General part information

103916 Series

Connector Header Through Hole 100 position 0.050" (1.27mm)
