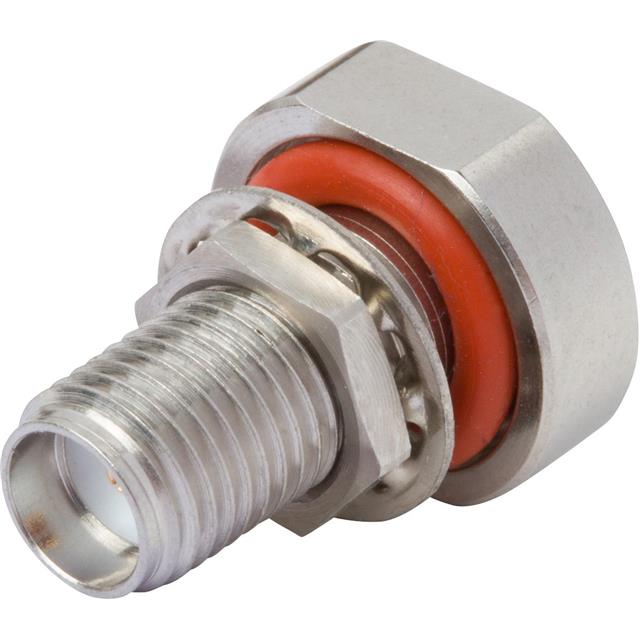

Specification	2944-6001

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	Flexible
Cable Group Size	0.047 "
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm
Includes	Connector, Lockwasher, O-Ring, Contact, Nut, Clamp Nut, Ferrule
Includes Total Count	7 pcs
Mating Cycles	500 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Shield Termination	Solder

2944-60 Series

Part	Mating Cycles	Body Finish	Includes	Includes Total Count	Body Material	Dielectric Material	Center Contact Plating	Fastening Type	Housing Color	Mounting Feature	Connector Type	Frequency - Max	Contact Termination	Cable Group Size	Cable Group	Shield Termination	Impedance	Mounting Type	Connector Style	Number of Ports	Center Contact Material
McGill Microwave Systems 2944-6001	500 cycles	Gold	Clamp Nut Connector Contact Ferrule Lockwasher Nut O-Ring	7 pcs	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	Threaded	Gold	Bulkhead Front Side Nut	Female Socket Jack	18 GHz	Solder	0.047 "	Flexible	Solder	50 Ohm	Panel Mount	SMA	1	Beryllium Copper
