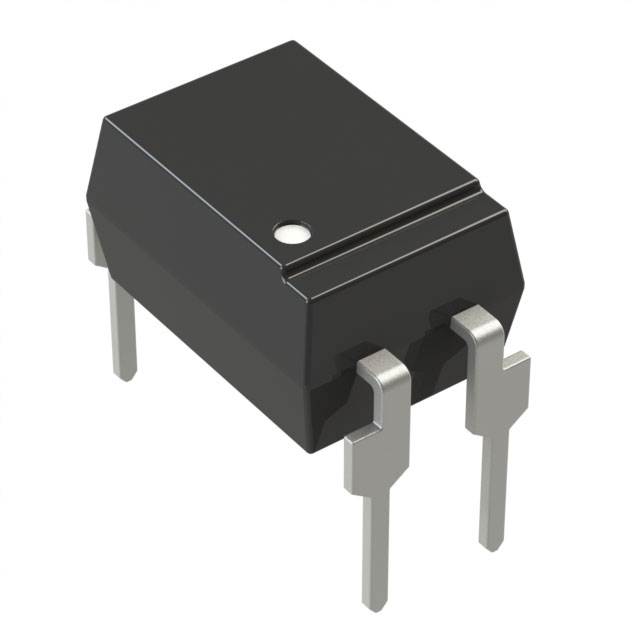

PC817X2NSZ1B

Active

SHARP/Socle Technology

OPTOISOLATOR 5KV TRANS DIP

Search across all available documentation for this part.

Active

SHARP/Socle Technology

OPTOISOLATOR 5KV TRANS DIP

Technical Specifications

Parameters and characteristics for this part

OPTOISOLATOR 5KV TRANS DIP

Part	Mounting Type	Vce Saturation (Max)	Current - DC Forward (If) (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Output Type	Supplier Device Package	Number of Channels
SHARP/Socle Technology PC817X2NSZ1B	Through Hole	200 mV	50 mA	3 µs	4 µs	4-DIP (0.300", 7.62mm)	50 mA	100 °C	-30 ░C	DC	1.81 mOhm	4-DIP	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5000	$ 0.20

General part information

Optoisolator Transistor Output 1 Channel 4-DIP

Technical documentation and resources

No documents available
