01008-2073

Active

Sensata-BEI Sensors

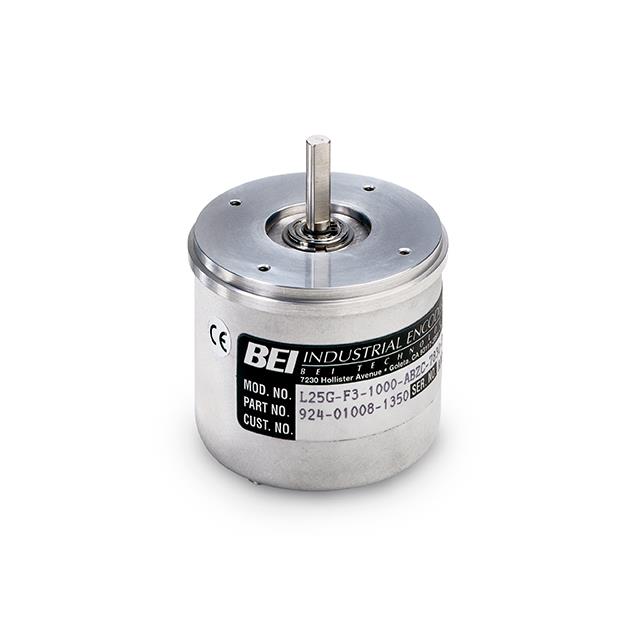

ROTARY ENCODER OPTICAL 500PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 500PPR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	01008-2073	01008 Series

Actuator Type	Shaft	Shaft
Built in Switch	False	False
Detent	False	False
Encoder Type	Optical	Optical
Mounting Type	Servo Mount	Servo Mount
Output Type	Quadrature with Index (Incremental)	Quadrature with Index (Incremental)
Pulses per Revolution	500	250 - 1024
Rotational Life (Cycles Min) [Min]	1B	1B
Termination Style	Cable	Cable, Connector
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	5 V	5 V

ROTARY ENCODER OPTICAL 1000PPR

Part	Rotational Life (Cycles Min) [Min]	Pulses per Revolution	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Encoder Type	Actuator Type	Output Type	Mounting Type
Sensata-BEI Sensors 01008-774	1B	1000	Cable	5 V	28 V	Optical	Shaft	Quadrature with Index (Incremental)	Servo Mount
Sensata-BEI Sensors 01008-2073	1B	500	Cable	5 V	28 V	Optical	Shaft	Quadrature with Index (Incremental)	Servo Mount
Sensata-BEI Sensors 01008-1568	1B	1024	Cable	5 V	28 V	Optical	Shaft	Quadrature with Index (Incremental)	Servo Mount
Sensata-BEI Sensors 01008-2203	1B	1000	Connector	5 V	28 V	Optical	Shaft	Quadrature with Index (Incremental)	Servo Mount
Sensata-BEI Sensors 01008-348	1B	250	Cable			Optical	Shaft	Quadrature with Index (Incremental)	Servo Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY ENCODER OPTICAL 500PPR

Technical documentation and resources

No documents available
