446253-000

Active

TE Connectivity Raychem Cable Protection

RNF-100-3/4-CL-FSP

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

RNF-100-3/4-CL-FSP

Technical Specifications

Parameters and characteristics for this part

Specification	446253-000

Color	Clear
Inner Diameter - Recovered [diameter]	0.375 in
Inner Diameter - Recovered [diameter]	9.53 mm
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.76 mm
Recovered Wall Thickness	0.03 "
Shrink Temperature	95 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Flexible

Part	Type	Color	Material	Shrinkage Ratio	Shrink Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]
TE Connectivity Raychem Cable Protection 446253-000	Tubing Flexible	Clear	Polyolefin (PO) Irradiated	2 to 1	95 °C	135 °C	-55 °C	0.375 in	9.53 mm	0.76 mm	0.03 "	35 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	400	$ 0.73

General part information

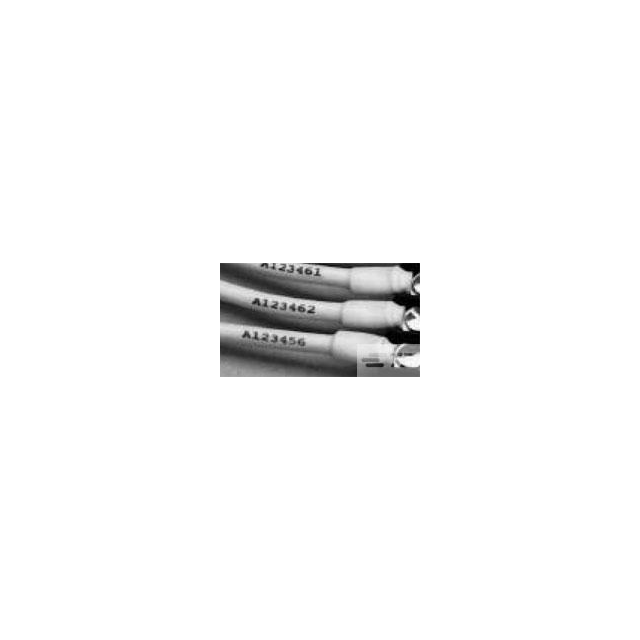

Heat Shrink Tubing, Flexible 0.750" (19.05mm) 2 to 1 Clear

Technical documentation and resources
