2301-3-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.

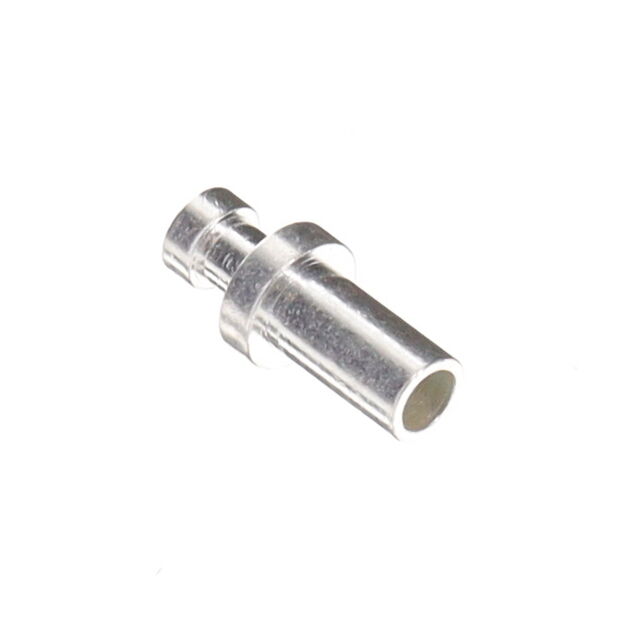

TERM TURRET SINGLE L=2.36MM
Deep-Dive with AI
Search across all available documentation for this part.
2301-3-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET SINGLE L=2.36MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2301-3-00-44-00-00-07-0 |
|---|---|
| Board Thickness | 0.094 in |
| Board Thickness | 2.39 mm |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 1.6 mm |
| Diameter - Turret Head [diameter] | 0.063 in |
| Flange Diameter [diameter] | 2.39 mm |
| Flange Diameter [diameter] | 0.094 in |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 0.093 in |
| Length - Above Board [x] | 2.36 mm |
| Length - Below Flange [x] | 2.92 mm |
| Length - Below Flange [x] | 0.115 in |
| Length - Overall [x] | 5.28 mm |
| Length - Overall [x] | 0.208 in |
| Mounting Hole Diameter [diameter] | 1.7 mm |
| Mounting Hole Diameter [diameter] | 0.067 " |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Staking Side ID | 1.17 mm |
| Staking Side ID | 0.046 in |
| Staking Side OD [diameter] | 1.57 mm |
| Staking Side OD [diameter] | 0.062 in |
| Terminal Type | Single End |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.86 | |
| 10 | $ 0.73 | |||
| 100 | $ 0.65 | |||
| 1000 | $ 0.47 | |||
| 5000 | $ 0.42 | |||
| 10000 | $ 0.39 | |||
Description
General part information
2301-3 Series
Terminal Turret Connector Single End 0.093" (2.36mm) Silver
Documents
Technical documentation and resources
No documents available
