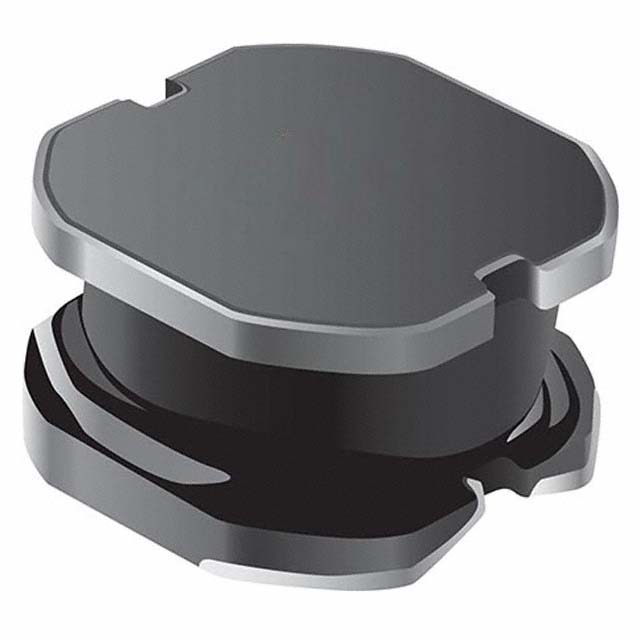

SRN1060-220M

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, SRN1060 SERIES, 22 H, 20%, SHIELDED, 0.053 OHM, 3.4 A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, SRN1060 SERIES, 22 H, 20%, SHIELDED, 0.053 OHM, 3.4 A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Type	Inductance Frequency - Test	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Q @ Freq	Material - Core	Inductance	Mounting Type	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Current Rating (Amps)
Bourns Inc. SRN1060-220M	20 %	Drum Core Wirewound	100 kHz	8 MHz	125 °C	-40 °C	0.236 in	6 mm	Shielded	Nonstandard	10 mm	0.386 in	9.8 mm	0.394 "	7.96 MHz 20	Ferrite	22 µH	Surface Mount	53 mOhm	3.4 A	3.4 A
Bourns Inc. SRN1060-330M	20 %	Drum Core Wirewound	100 kHz	7 MHz	125 °C	-40 °C	0.236 in	6 mm	Shielded	Nonstandard	10 mm	0.386 in	9.8 mm	0.394 "	2.52 MHz 16	Ferrite	33 µH	Surface Mount	72 mOhm	2.8 A	3.15 A
Bourns Inc. SRN1060-180M	20 %	Drum Core Wirewound	100 kHz	10 MHz	125 °C	-40 °C	0.236 in	6 mm	Shielded	Nonstandard	10 mm	0.386 in	9.8 mm	0.394 "	7.96 MHz 25	Ferrite	18 µH	Surface Mount	43 mOhm	3.8 A	3.85 A
Bourns Inc. SRN1060-471M	20 %	Drum Core Wirewound	100 kHz	2 MHz	125 °C	-40 °C	0.236 in	6 mm	Shielded	Nonstandard	10 mm	0.386 in	9.8 mm	0.394 "	13 796 kHz	Ferrite		Surface Mount	950 mOhm	800 mA	800 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µH Shielded Drum Core, Wirewound Inductor 3.4 A 53mOhm Max Nonstandard
