L53 Series

Part	Lens Style	Color	Lens Size	Lens Size (Code)	Size / Dimension Diameter	Millicandela Rating	Package Name	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Test	Package / Case	Configuration	Viewing Angle	Lens Color	Wavelength - Peak	Lens Transparency	Height (Max)

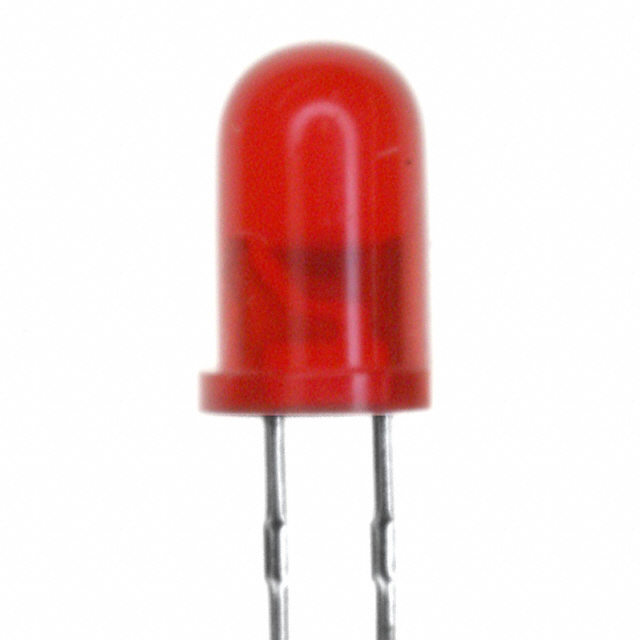

Kingbright L53HD	Domed Top Round	Red	5 mm	T-1 3/4	5 mm	5 mcd	T-1 3/4	660 nm	2.25 V	Through Hole	10 mA	Radial	Standard	60 °	Red	700 nm	Diffused	9.6 mm
Kingbright L53IT	Domed Top Round	Red	5 mm	T-1 3/4	5 mm	80 mcd	T-1 3/4	625 nm	2 V	Through Hole	10 mA	Radial	Standard	30 °	Red	627 nm	Clear	9.6 mm
Kingbright L53GT	Domed Top Round	Green	5 mm	T-1 3/4	5 mm	60 mcd	T-1 3/4	568 nm	2 V	Through Hole	10 mA	Radial	Standard	30 °	Green	565 nm	Clear	9.6 mm
Kingbright L53YT	Domed Top Round	Yellow	5 mm	T-1 3/4	5 mm	40 mcd	T-1 3/4	588 nm	2.1 V	Through Hole	10 mA	Radial	Standard	30 °	Yellow	590 nm	Clear	9.6 mm
