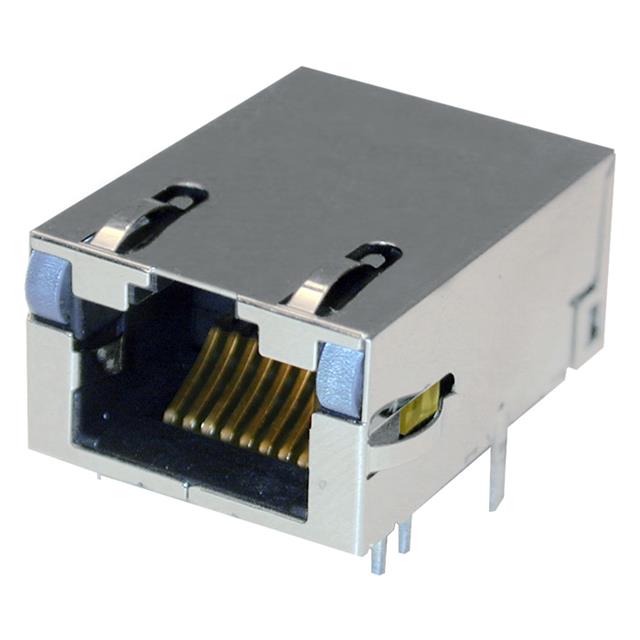

1840632-1

Active

TRP Connector B.V.

CONN JACK 1PORT 1000 BASE-T PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 1000 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1PORT 1000 BASE-T PCB

Part	Mounting Type	Tab Direction	Connector Type	LED Color	Applications	Height Above Board [z]	Height Above Board [z]	Number of Cores per Jack	Number of Rows	Contact Material	Termination	Number of Ports	Shield Material	Housing Material	Orientation	Contact Finish Thickness	Contact Finish Thickness	Features	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish
TRP Connector B.V. 1840632-1	Through Hole	Up	RJ45	Green, Yellow	10/100/1000 Base-T, AutoMDIX	0.539 in	13.7 mm	8	1	Phosphor Bronze	Solder	1	Brass	Thermoplastic	90 ░ Angle	1.27 µm	50 µin	Board Guide	Shielded, EMI Finger	70 °C	0 °C	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	385	$ 8.02

General part information

1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
