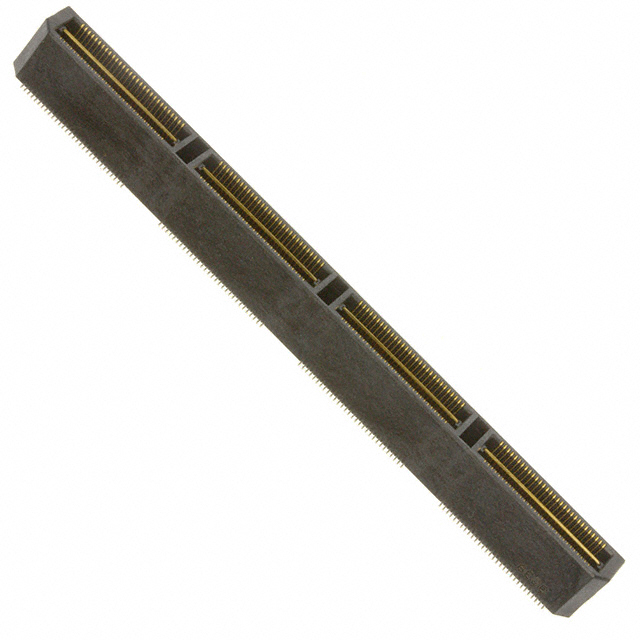

QTH-120-02-L-D-A-K-TR

Active

Samtec Inc.

CONN HDR 240POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QTH-120-02-L-D-A-K-TR

Active

Samtec Inc.

CONN HDR 240POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTH-120-02-L-D-A-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board	7.26 mm
Height Above Board	0.286 "
Mated Stacking Heights	8 mm
Mounting Type	Surface Mount
Number of Positions	240
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QTH-120 Series

Board to Board & Mezzanine Connectors 0.50 mm Q Strip High-Speed Ground Plane Terminal Strip

Part	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Number of Positions	Mated Stacking Heights	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Features	Height Above Board	Height Above Board
Samtec Inc. QTH-120-08-F-D-A	1.151 in	29.24 mm	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	240	30 mm	Surface Mount	Gold	0.5 mm	0.02 in
Samtec Inc. QTH-120-09-C-D-A-K			50 µin	1.27 µm	Header Outer Shroud Contacts	2	240	14 mm	Surface Mount	Gold	0.5 mm	0.02 in	Board Guide Ground Bus (Plane) Pick and Place	0.522 in	13.25 mm
Samtec Inc. QTH-120-04-C-D-A			50 µin	1.27 µm	Header Outer Shroud Contacts	2	240	16 mm	Surface Mount	Gold	0.5 mm	0.02 in		0.6 in	15.24 mm
Samtec Inc. QTH-120-06-F-D	0.836 "	21.23 mm	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	240	22 mm	Surface Mount	Gold	0.5 mm	0.02 in	Ground Bus (Plane)
Samtec Inc. QTH-120-01-H-D-A			30 Áin	0.76 Ám	Header Outer Shroud Contacts	2	240	5 mm	Surface Mount	Gold	0.5 mm	0.02 in		0.16 in	4.06 mm
Samtec Inc. QTH-120-02-F-D-A			3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	240	8 mm	Surface Mount	Gold	0.5 mm	0.02 in		0.286 "	7.26 mm
Samtec Inc. QTH-120-02-L-D-A-K-TR			10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	240	8 mm	Surface Mount	Gold	0.5 mm	0.02 in	Board Guide Ground Bus (Plane) Pick and Place	0.286 "	7.26 mm
Samtec Inc. QTH-120-07-C-D-A			50 µin	1.27 µm	Header Outer Shroud Contacts	2	240	25 mm	Surface Mount	Gold	0.5 mm	0.02 in		0.954 in	24.23 mm
Samtec Inc. QTH-120-04-H-D-A-K			30 Áin	0.76 Ám	Header Outer Shroud Contacts	2	240	16 mm	Surface Mount	Gold	0.5 mm	0.02 in	Board Guide Ground Bus (Plane) Pick and Place	0.6 in	15.24 mm
Samtec Inc. QTH-120-03-L-D			10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	240	11 mm	Surface Mount	Gold	0.5 mm	0.02 in	Ground Bus (Plane)	0.404 in	10.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

QTH-120 Series

Board to Board & Mezzanine Connectors 0.50 mm Q Strip High-Speed Ground Plane Terminal Strip
