Q-2J00M000H002F

Active

Amphenol Custom Cable

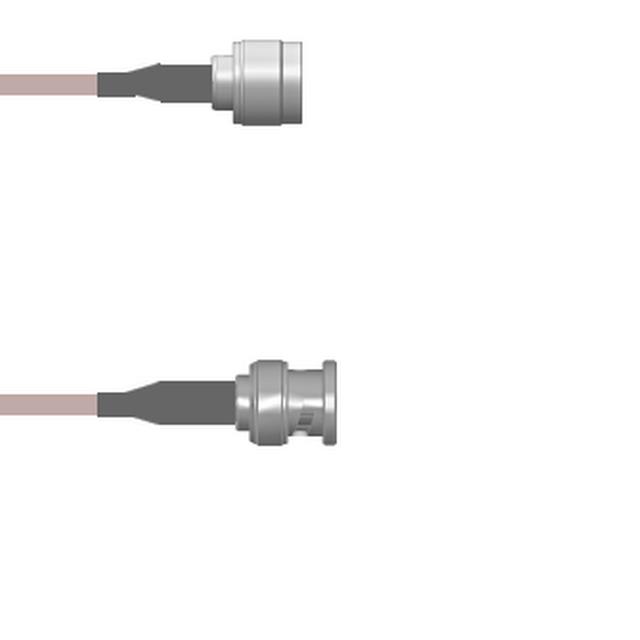

CBL ASSY BNC-NTYPE PLUG-PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2J00M000H002F

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE PLUG-PLUG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2J00M000H002F

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-2J00M0 Series

Part	2nd Contact Gender	Cable Impedance	2nd Connector Mounting Type	Style	1st Connector	Connector Impedance	Cable Type	Frequency - Max [Max]	Color	1st Contact Gender	Features	Overall Impedance	2nd Connector	Length	Length	Length	1st Connector Mounting Type
Amphenol Custom Cable Q-2J00M000H002M	Male	50 Ohms	Free Hanging (In-Line)	BNC to N-Type	BNC Plug	50 Ohms	RG-142	4 GHz	Copper	Male	Shielded	50 Ohms	N-Type Plug	6.6 ft	78.7 in	2 m	Free Hanging (In-Line)
Amphenol Custom Cable Q-2J00M000H001M	Male	50 Ohms	Free Hanging (In-Line)	BNC to N-Type	BNC Plug	50 Ohms	RG-142	4 GHz	Copper	Male	Shielded	50 Ohms	N-Type Plug	3.3 ft	39.4 in	1 m	Free Hanging (In-Line)
Amphenol Custom Cable Q-2J00M000H003F	Male	50 Ohms	Free Hanging (In-Line)	BNC to N-Type	BNC Plug	50 Ohms	RG-142	4 GHz	Copper	Male	Shielded	50 Ohms	N-Type Plug		36 in	91.44 cm	Free Hanging (In-Line)
Amphenol Custom Cable Q-2J00M000H1.5M	Male	50 Ohms	Free Hanging (In-Line)	BNC to N-Type	BNC Plug	50 Ohms	RG-142	4 GHz	Copper	Male	Shielded	50 Ohms	N-Type Plug	4.9 ft	59.1 in	1.5 m	Free Hanging (In-Line)
Amphenol Custom Cable Q-2J00M000H.75M	Male	50 Ohms	Free Hanging (In-Line)	BNC to N-Type	BNC Plug	50 Ohms	RG-142	4 GHz	Copper	Male	Shielded	50 Ohms	N-Type Plug		29.53 "	750 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-2J00M000H009F	Male	50 Ohms	Free Hanging (In-Line)	BNC to N-Type	BNC Plug	50 Ohms	RG-142	4 GHz	Copper	Male	Shielded	50 Ohms	N-Type Plug	9 ft	108 in	2.7 m	Free Hanging (In-Line)
Amphenol Custom Cable Q-2J00M000H002F	Male	50 Ohms	Free Hanging (In-Line)	BNC to N-Type	BNC Plug	50 Ohms	RG-142	4 GHz	Copper	Male	Shielded	50 Ohms	N-Type Plug		24 "	609.6 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-2J00M000H0.5M	Male	50 Ohms	Free Hanging (In-Line)	BNC to N-Type	BNC Plug	50 Ohms	RG-142	4 GHz	Copper	Male	Shielded	50 Ohms	N-Type Plug		19.69 "	50 cm	Free Hanging (In-Line)
Amphenol Custom Cable Q-2J00M000H004F	Male	50 Ohms	Free Hanging (In-Line)	BNC to N-Type	BNC Plug	50 Ohms	RG-142	4 GHz	Copper	Male	Shielded	50 Ohms	N-Type Plug	4 ft	48 in	1200 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-2J00M000H2.5M	Male	50 Ohms	Free Hanging (In-Line)	BNC to N-Type	BNC Plug	50 Ohms	RG-142	4 GHz	Copper	Male	Shielded	50 Ohms	N-Type Plug	8.2 '	98.4 in	2.5 m	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 69.36
		25	$ 68.00
		50	$ 66.64
		100	$ 65.28
		250	$ 63.91

Description

General part information

Q-2J00M0 Series

Cable Assembly Coaxial BNC to N-Type RG-142 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
