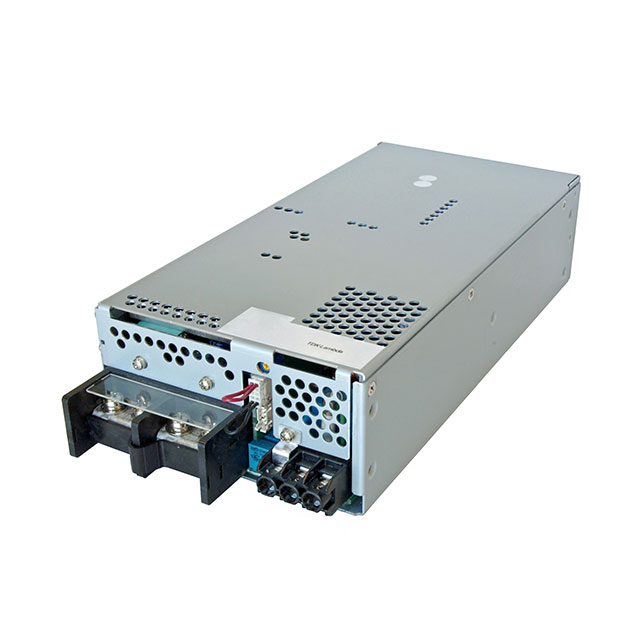

RWS1500B-48/RF

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.536 KW, 48 V, 32 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

RWS1500B-48/RF

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.536 KW, 48 V, 32 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RWS1500B-48/RF

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	32 A
Efficiency	88 %
Features	Remote Sense, Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	1.536 kW
Size / Dimension [x]	10.28 "
Size / Dimension [x]	261.1 mm
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	63 mm
Size / Dimension [z]	2.48 "
Type	Enclosed
Voltage - Input [Max]	340 VDC, 265 VAC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

RWS1500 Series

Part	Power (Watts)	Type	Voltage - Output 1	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Number of Outputs	Features	Mounting Type	Applications	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]
TDK-LAMBDA RWS1500B-48/RF	1.536 kW	Enclosed	48 V	CE	10.28 "	5 "	63 mm	261.1 mm	2.48 "	127 mm	88 %	60 °C	-20 °C	4000 V	1	Adjustable Output DC Input Capable Remote Sense Universal Input	Chassis Mount	ITE (Commercial)	32 A	85 VAC 120 VDC	265 VAC 340 VDC
TDK-LAMBDA RWS1500B-24/ME	1512 W	Enclosed	24 V	CE	10.28 "	5 "	63 mm	261.1 mm	2.48 "	127 mm	88 %	60 °C	-20 °C	4000 V	1	Remote Sense Universal Input	Chassis Mount	Medical	63 A	85 VAC 120 VDC	265 VAC 340 VDC
TDK-LAMBDA RWS1500B-12/ME	1500 W	Enclosed	12 V	CE	10.28 "	5 "	63 mm	261.1 mm	2.48 "	127 mm	85 %	60 °C	-20 °C	4000 V	1	Remote Sense Universal Input	Chassis Mount	Medical	125 A	85 VAC 120 VDC	265 VAC 340 VDC
TDK-LAMBDA RWS1500B-15/CO2	1500 W	Conformal Coated Enclosed	15 V	CE	10.28 "	5 "	63 mm	261.1 mm	2.48 "	127 mm	85 %	60 °C	-20 °C	4000 V	1	Adjustable Output DC Input Capable Remote Sense Universal Input	Chassis Mount	ITE (Commercial)	100 A	85 VAC 120 VDC	265 VAC 340 VDC
TDK-LAMBDA RWS1500B-15/FO	1500 W	Enclosed	15 V	CE	10.28 "	5 "	63 mm	261.1 mm	2.48 "	127 mm	85 %	60 °C	-20 °C	4000 V	1	Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input	Chassis Mount	ITE (Commercial)	100 A	85 VAC 120 VDC	265 VAC 340 VDC
TDK-LAMBDA RWS1500B-24/FO	1512 W	Enclosed	24 V	CE	10.28 "	5 "	63 mm	261.1 mm	2.48 "	127 mm	88 %	60 °C	-20 °C	4000 V	1	Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input	Chassis Mount	ITE (Commercial)	63 A	85 VAC 120 VDC	265 VAC 340 VDC
TDK-LAMBDA RWS1500B-36/RF	1512 W	Enclosed	36 V	CE	10.28 "	5 "	63 mm	261.1 mm	2.48 "	127 mm	88 %	60 °C	-20 °C	4000 V	1	Adjustable Output DC Input Capable Remote Sense Universal Input	Chassis Mount	ITE (Commercial)	42 A	85 VAC 120 VDC	265 VAC 340 VDC
TDK-LAMBDA RWS1500B-24	1500 W	Enclosed	24 V	CE	10.28 "	5 "		261 mm	2.48 "		88 %	60 °C	-20 °C	4000 V	1	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	ITE (Commercial)	63 A	85 VAC 120 VDC	265 VAC 340 VDC	127 mm	63 mm
TDK-LAMBDA RWS1500B-48	1500 W	Enclosed	48 V	CE	10.28 "	5 "		261 mm	2.48 "		88 %	60 °C	-20 °C	4000 V	1	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	ITE (Commercial)	32 A	85 VAC 120 VDC	265 VAC 340 VDC	127 mm	63 mm
TDK-LAMBDA RWS1500B-12	1500 W	Enclosed	12 V	CE	10.28 "	5 "		261 mm	2.48 "		85 %	60 °C	-20 °C	4000 V	1	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	ITE (Commercial)	125 A	85 VAC 120 VDC	265 VAC 340 VDC	127 mm	63 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 526.18
Newark	Each	1	$ 526.18
		10	$ 509.57
		25	$ 487.41
		50	$ 472.63

Description

General part information

RWS1500 Series

The RWS1500B48/RF from TDK-Lambda is a RWS1500-B series single output general purpose power supply. Approved by UL60950-1, CSA60950, EN60950-1 safety standards.
