5767039-5
ActiveTE Connectivity AMP Connectors

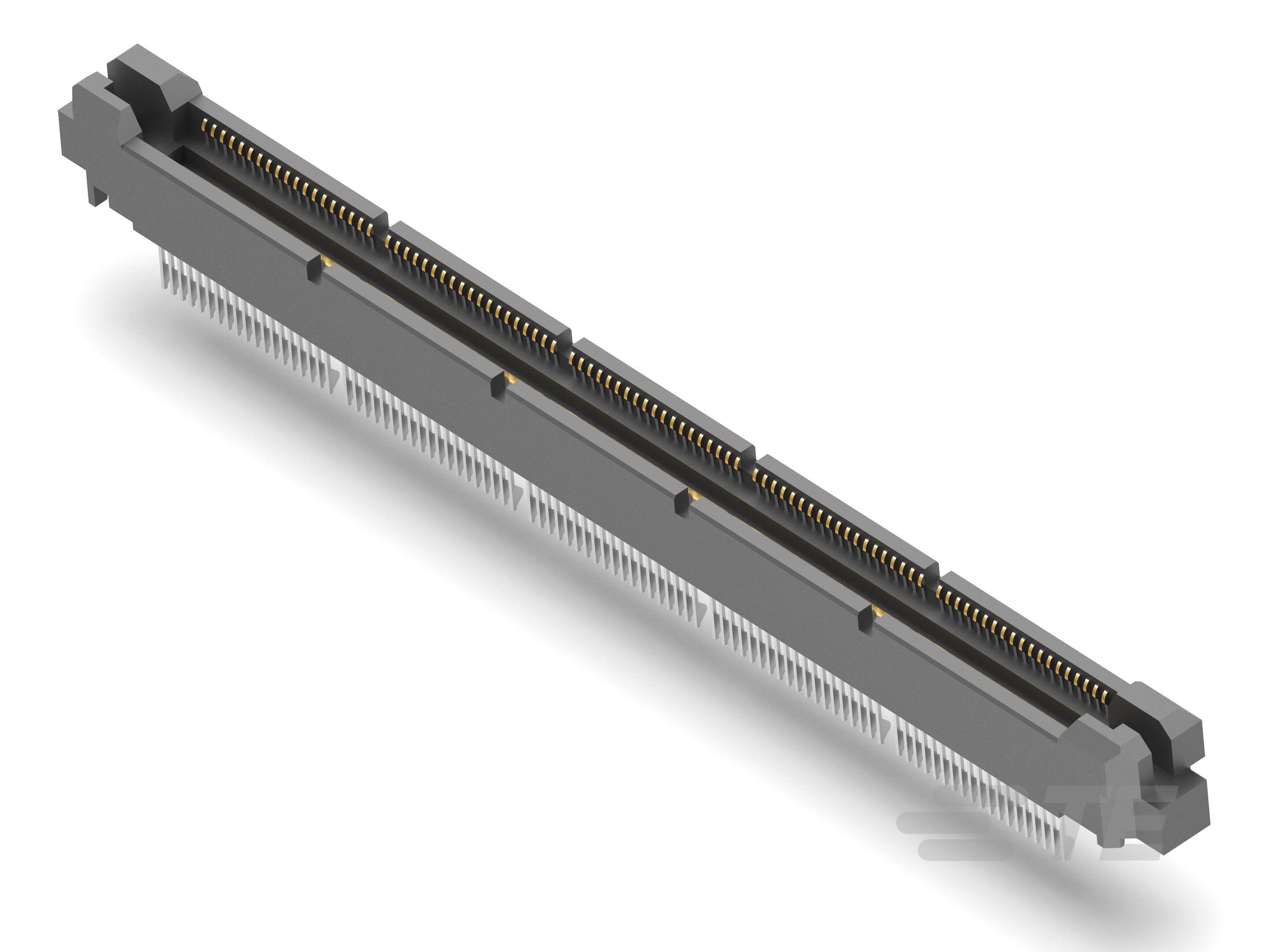

MICTOR,RA PLUG,190,.093PCB,ASY
5767039-5
ActiveTE Connectivity AMP Connectors
MICTOR,RA PLUG,190,.093PCB,ASY
Description
General part information
5767039 Series
PCB Mount Header, Straddle Mount, Board-to-Board, 190 Position, .64 mm [.025 in] Centerline, Gold (Au), Surface Mount, Signal, Black, Box / Tube
Technical Specifications
Parameters and characteristics for this part
| Specification | 5767039-5 |
|---|---|
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Ground Bus (Plane), Board Guide |
| Height Above Board | 0.251 in |
| Mounting Type | Straddle Mount, Board Edge |
| Number of Positions | 190 |
| Number of Rows | 2 |
| Pitch | 0.025 in |
