P50L-060S-A-DA

Active

3M (TC)

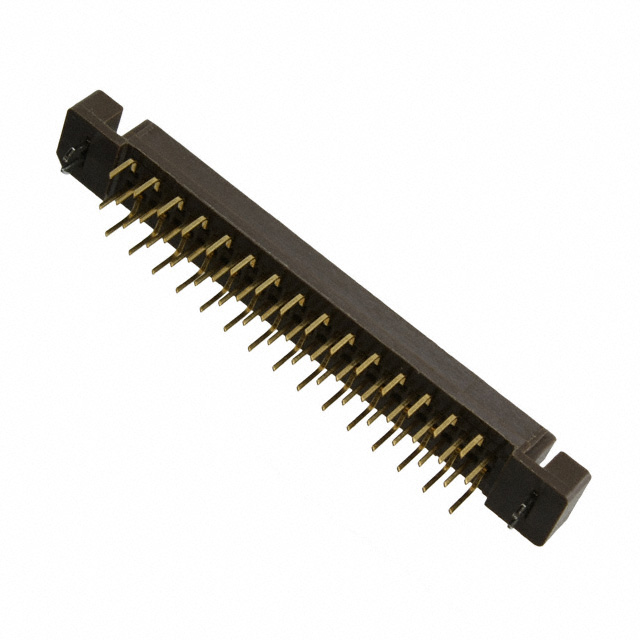

80000923948 P50L-060S-A-DA =PAK50 CONNECTOR/ROHS

Search across all available documentation for this part.

Active

3M (TC)

80000923948 P50L-060S-A-DA =PAK50 CONNECTOR/ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	P50L-060S-A-DA

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Flange, Board Lock
Height Above Board	0.213 in
Height Above Board	5.4 mm
Mated Stacking Heights	7 mm, 9 mm
Mounting Type	Through Hole
Number of Positions	60
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Connector Type	Number of Positions	Mounting Type	Number of Rows	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish	Mated Stacking Heights	Features	Height Above Board	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness
3M (TC) P50L-080S-RR1-DA	Outer Shroud Contacts Socket	80	Through Hole Right Angle	2	0.275 in	6.99 mm	0.05 in	1.27 mm	Flash	Gold
3M (TC) P50L-060S-A-DA	Outer Shroud Contacts Socket	60	Through Hole	2	5.4 mm		0.05 in	1.27 mm	Flash	Gold	7 mm 9 mm	Board Lock Flange	0.213 in
3M (TC) P50L-080S-A-DA	Outer Shroud Contacts Socket	80	Through Hole	2	5.4 mm		0.05 in	1.27 mm	Flash	Gold	7 mm 9 mm	Board Lock Flange	0.213 in
3M (TC) P50L-100S-RR1-DA	Outer Shroud Contacts Socket	100	Through Hole Right Angle	2	0.275 in	6.99 mm	0.05 in	1.27 mm	Flash	Gold
3M (TC) P50L-060P-AS-DA		60	Surface Mount	2			0.05 in	1.27 mm	Flash	Gold	7 mm 8 mm	Board Guide Solder Retention		5 mm	0.197 in
3M (TC) P50L-060S-B-TGF	Outer Shroud Contacts Socket	60	Through Hole	2	6.4 mm		0.05 in	1.27 mm		Gold	8 mm 10 mm	Board Lock Flange	0.252 in
3M (TC) P50L-060P-RR1-DA		60	Through Hole Right Angle	2	0.275 in	6.99 mm	0.05 in	1.27 mm	Flash	Gold		Board Lock Flange
3M (TC) P50L-020S-RR1-TGF	Outer Shroud Contacts Socket	20	Through Hole Right Angle	2	0.275 in	6.99 mm	0.05 in	1.27 mm		Gold						3 Áin	0.076 Ám
3M (TC) P50L-120S-A-TGF	Outer Shroud Contacts Socket	120	Through Hole	2	5.4 mm		0.05 in	1.27 mm		Gold	7 mm 9 mm	Board Lock Flange	0.213 in
3M (TC) P50L-040P-RR4-DA		40	Through Hole Right Angle	2	9 mm		0.05 in	1.27 mm	Flash	Gold			0.354 in
