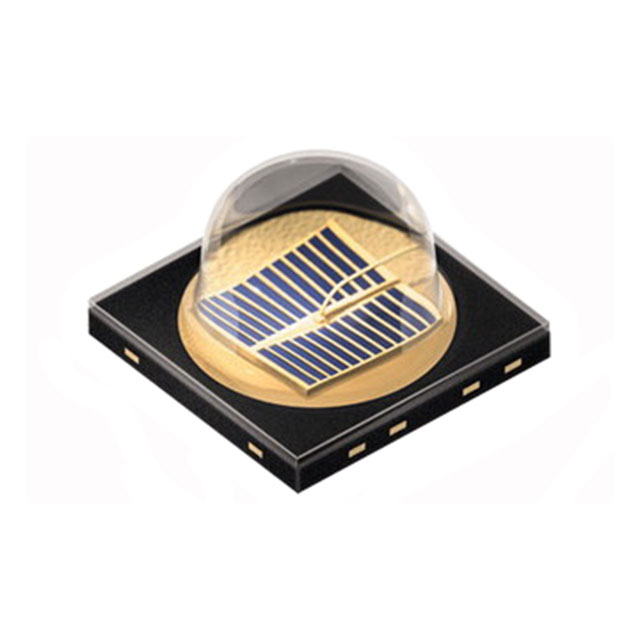

SFH 4725S

Obsolete

ams-OSRAM USA INC.

EMITTER IR 950NM 1A SMD

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

EMITTER IR 950NM 1A SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SFH 4725S	SFH4725 Series

Current - DC Forward (If) (Max)	1 A	1 A
Current - DC Forward (If) (Max)	-	1.5 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	3-SMD, No Lead	3-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	320 mW/sr	320 - 560 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	-	80 °
Viewing Angle [custom]	90 °	90 °
Voltage - Forward (Vf) (Typ)	2.75 V	2.65 - 2.75 V
Wavelength	950 nm	950 nm

EMITTER IR 940NM 3SMD

Part	Radiant Intensity (Ie) Min @ If [Min]	Mounting Type	Orientation	Package / Case	Wavelength	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Viewing Angle [custom]	Current - DC Forward (If) (Max)
ams-OSRAM USA INC. SFH 4725AS A01	560 mW/sr	Surface Mount	Top View	3-SMD, No Lead	950 nm	1.5 A	125 °C	-40 °C	Infrared (IR)	80 °	2.65 V
ams-OSRAM USA INC. SFH 4725AS A01 C1021	560 mW/sr	Surface Mount	Top View	3-SMD, No Lead	950 nm	1.5 A	125 °C	-40 °C	Infrared (IR)	80 °	2.65 V
ams-OSRAM USA INC. SFH 4725S	320 mW/sr	Surface Mount	Top View	3-SMD, No Lead	950 nm		125 °C	-40 °C	Infrared (IR)		2.75 V	90 °	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Infrared (IR) Emitter 950nm 2.75V 1A 320mW/sr @ 1A 90° 3-SMD, No Lead
