10326-A200-00
Active3M
CONN BACKSHELL 26POS 180DEG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
10326-A200-00
Active3M
CONN BACKSHELL 26POS 180DEG SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10326-A200-00 | 10326 Series |
|---|---|---|
| - | - | |
| Accessory Type | Two Piece Backshell | Two Piece Backshell, Two Piece Backshell and Cover |
| Cable Exit | 180 ° | 180 ° |
| Cable Type | Round | Round, Flat |
| Color | Silver | Black, Silver, Beige, Gray, Dark |
| Features | Latch Lock | Latch Lock, Mating Screws 4-40, Mating Screws M2.6 |
| Hardware | - | Assembly Hardware, Strain Relief, Gasket |
| Material | Zinc Alloy, Metal | Polybutylene Terephthalate (PBT), Glass Filled, Metal, Zinc, Acrylonitrile Butadiene Styrene (ABS), Zinc Alloy, Metal |
| Material | - | Plastic, Steel |
| Material | - | Metal |
| Number of Positions | 26 | 26 |
| Plating | Nickel | Nickel |
| Primary Material | Metal | Plastic, Metal |
| Shielding | Shielded | Unshielded, Shielded |
10326 Series
CONNECTOR BACKSHELL, SOLDER PLUG JUNCTION BACKSHELL, 26 POSITION CONNECTOR, 180°
| Part | Cable Exit | Primary Material | Color | Material | Accessory Type | Hardware | Features | Number of Positions | Cable Type | Shielding | Plating | Material [custom] | Material [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
180 ° | Plastic | Black | Polybutylene Terephthalate (PBT), Glass Filled | Two Piece Backshell | Assembly Hardware, Strain Relief | Latch Lock | 26 | Round | Unshielded | ||||
180 ° | Metal | Silver | Metal, Zinc | Two Piece Backshell | Assembly Hardware, Gasket | Latch Lock | 26 | Flat | Shielded | Nickel | |||
180 ° | Plastic | Black | Acrylonitrile Butadiene Styrene (ABS) | Two Piece Backshell | Assembly Hardware | 26 | Round | ||||||
180 ° | Metal | Beige | Two Piece Backshell and Cover | Mating Screws 4-40 | 26 | Round | Shielded | Plastic, Steel | Metal | ||||
180 ° | Metal | Black | Two Piece Backshell and Cover | Mating Screws 4-40 | 26 | Round | Shielded | Plastic, Steel | Metal | ||||
180 ° | Plastic | Black | Polybutylene Terephthalate (PBT), Glass Filled | Two Piece Backshell | Assembly Hardware, Strain Relief | Mating Screws M2.6 | 26 | Round | Unshielded | ||||
180 ° | Metal | Dark, Gray | Two Piece Backshell and Cover | Latch Lock | 26 | Round | Shielded | Plastic, Steel | Metal | ||||
180 ° | Metal | Silver | Metal, Zinc Alloy | Two Piece Backshell | Latch Lock | 26 | Round | Shielded | Nickel | ||||
180 ° | Metal | Silver | Zinc Alloy | Two Piece Backshell | Latch Lock | 26 | Round | Shielded | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10326 Series

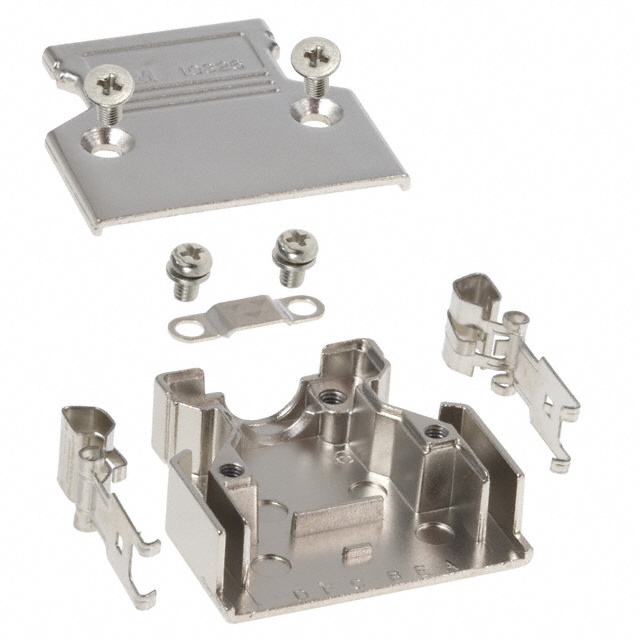

26 Position Two Piece Backshell Connector Silver 180° Shielded
Documents
Technical documentation and resources
