155210-5203-RB

Active

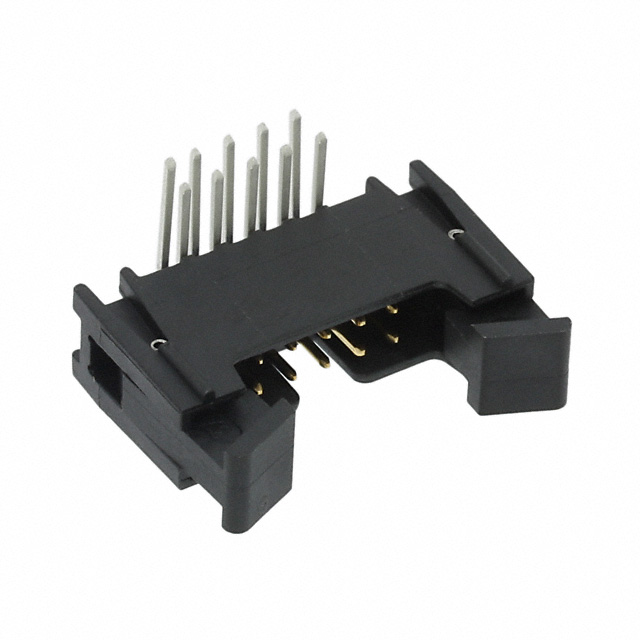

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE RIGHT ANGLE, 1552 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

155210-5203-RB

Active

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE RIGHT ANGLE, 1552 SERIES

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1092	$ 5.04
Newark	Pack of 100	1	$ 8.55

Description

General part information

155210 Series

Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155210-5203-RB	155210 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	10 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.25 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	3.94 mm	2.84 - 3.94 mm
Contact Length - Post	0.155 "	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	6.28 mm	6.28 - 10.8 mm
Insulation Height	0.247 in	0.247 - 0.425 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155210 Series

CONN HEADER VERT 10POS 2MM

Part	Material Flammability Rating	Mounting Type	Termination	Current Rating (Amps)	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Features	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Style	Shrouding	Fastening Type	Number of Rows	Contact Shape	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Color	Number of Positions	Contact Material	Row Spacing - Mating	Row Spacing - Mating
3M 155210-6202-RB	UL94 V-0	Through Hole	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.425 in	10.8 mm	2.84 mm	0.112 in	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5202-RB	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	2.84 mm	0.112 in	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-2400-RB	UL94 V-0	Surface Mount	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.425 in	10.8 mm			Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-2300-RB-WD	UL94 V-0	Surface Mount	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot, Pick and Place	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.425 in	10.8 mm			Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5203-RB	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	3.94 mm	0.155 "	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-6302-RB	UL94 V-0	Through Hole	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.425 in	10.8 mm	2.84 mm	0.112 in	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5302-RB	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	2.84 mm	0.112 in	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5303-RA	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	3.94 mm	0.155 "	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	10 çin	0.25 çm	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5302-RA	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	2.84 mm	0.112 in	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	10 çin	0.25 çm	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5303-RB	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	3.94 mm	0.155 "	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
