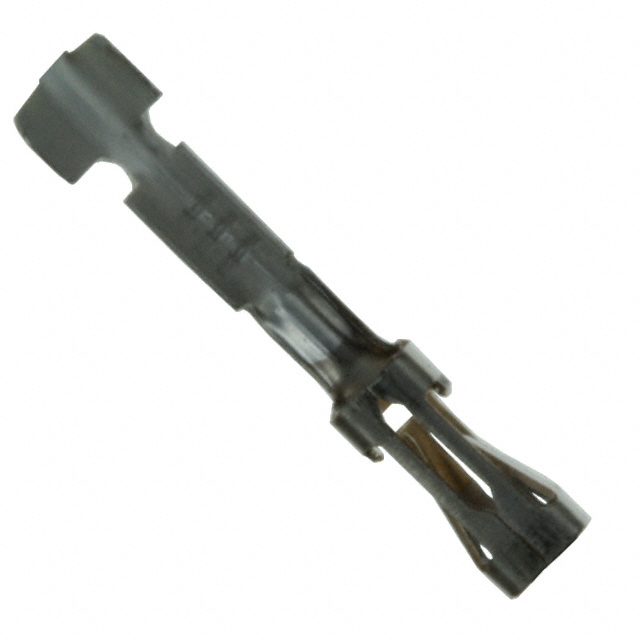

5-102316-6
ActiveTE Connectivity AMP Connectors
CONN SOCKET 27-32AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-102316-6
ActiveTE Connectivity AMP Connectors
CONN SOCKET 27-32AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-102316-6 | 102316 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Tin |
| Contact Finish Thickness | 15 µin | 15 - 50 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 - 1.27 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 32 AWG | 32 AWG |
| Wire Gauge [Min] | 27 AWG | 27 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 62500 | $ 0.13 | |
102316 Series
CONN SOCKET 27-32AWG CRIMP GOLD
| Part | Contact Finish | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-102316-3 | Gold | Crimp | 15 µin | 0.38 µm | Socket | 27 AWG | 32 AWG |
TE Connectivity AMP Connectors 1-102316-2 | Tin | Crimp | 50 µin | 1.27 µm | Socket | 27 AWG | 32 AWG |
TE Connectivity AMP Connectors 102316-8 | Gold | Crimp | 30 Áin | 0.76 Ám | Socket | 27 AWG | 32 AWG |
TE Connectivity AMP Connectors 5-102316-6 | Gold | Crimp | 15 µin | 0.38 µm | Socket | 27 AWG | 32 AWG |
Description
General part information
102316 Series
Socket Contact Gold 27-32 AWG Crimp
