734C6 0081000

Active

Belden Inc.

6#20LDPE/GIFHDLDPESHFRPVCFRPVC

Search across all available documentation for this part.

Active

Belden Inc.

6#20LDPE/GIFHDLDPESHFRPVCFRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	734C6 0081000

Cable Group	RG-59
Cable Type	Multi-Conductor
Conductor Material	Silver Coated, Steel, Copper Covered
Conductor Strand	Solid
Dielectric Diameter [diameter]	3.75 mm
Dielectric Diameter [diameter]	0.148 in
Jacket (Insulation) Diameter [diameter]	19.74 mm
Jacket (Insulation) Diameter [diameter]	0.777 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Usage	Datacom
VoP, Velocity of Propagation	80
Wire Gauge	20 AWG

Part	Usage	Conductor Material	Jacket (Insulation) Material	Cable Group	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	VoP, Velocity of Propagation	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Wire Gauge
Belden Inc. 734C6 0081000	Datacom	Copper Covered Silver Coated Steel	Poly-Vinyl Chloride (PVC)	RG-59	3.75 mm	0.148 in	Solid	19.74 mm	0.777 in	304.8 m	1000 ft	80	Gray	-40 °C	75 ░C	Multi-Conductor	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 6.72

General part information

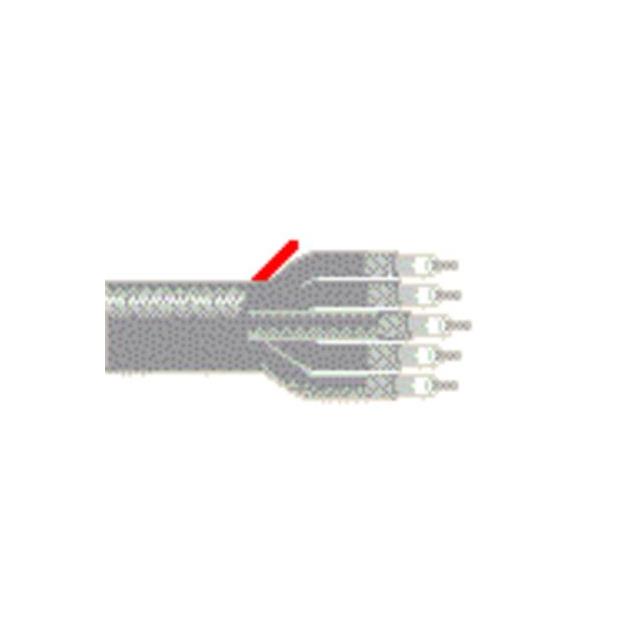

Multi-Conductor Cable 20 AWG RG-59 1000.0' (304.80m)
