DS26519GNA2+
ActiveAnalog Devices Inc./Maxim Integrated

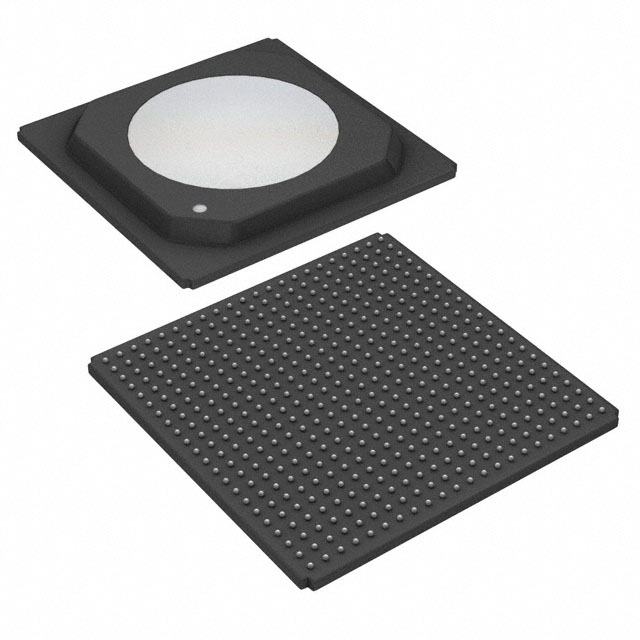

IC TXRX FULL 16/16 484HSBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS26519GNA2+
ActiveAnalog Devices Inc./Maxim Integrated
IC TXRX FULL 16/16 484HSBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS26519GNA2+ | DS26519 Series |
|---|---|---|
| Duplex | Full | Full |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Drivers/Receivers [custom] | 16 | 16 |
| Number of Drivers/Receivers [custom] | 16 | 16 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 484-BGA Exposed Pad | 484-BGA Exposed Pad |
| Protocol | Ethernet | Ethernet |
| Type | Transceiver | Transceiver |
| Voltage - Supply [Max] | 3.465 V | 3.465 V |
| Voltage - Supply [Min] | 3.135 V | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DS26519 Series
IC TXRX FULL 16/16 484HSBGA
| Part | Duplex | Protocol | Type | Number of Drivers/Receivers [custom] | Number of Drivers/Receivers [custom] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS26519GN+ | Full | Ethernet | Transceiver | 16 | 16 | Surface Mount | 85 °C | -40 °C | 3.465 V | 3.135 V | 484-BGA Exposed Pad |
Analog Devices Inc./Maxim Integrated DS26519GNA2+ | Full | Ethernet | Transceiver | 16 | 16 | Surface Mount | 85 °C | -40 °C | 3.465 V | 3.135 V | 484-BGA Exposed Pad |
Description
General part information
DS26519 Series
16/16 Transceiver Full Ethernet 484-HSBGA (23x23)
