JF15RP3HC

Active

NKK Switches

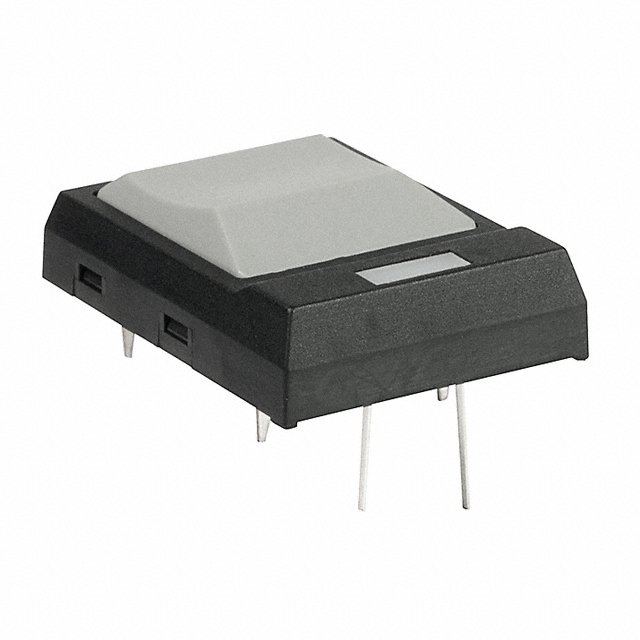

TACTILE SWITCH, JF SERIES, TOP ACTUATED, THROUGH HOLE, SQUARE BUTTON, 200 GF, 50MA AT 24VDC

Search across all available documentation for this part.

Active

NKK Switches

TACTILE SWITCH, JF SERIES, TOP ACTUATED, THROUGH HOLE, SQUARE BUTTON, 200 GF, 50MA AT 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	JF15RP3HC

Actuator Height off PCB, Vertical	6.78 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2 VDC
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	200 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	22.8 mm
Outline [y]	17.7 mm
Switch Function	Off-Mom
Switch Travel	0.8 mm
Termination Style	PC Pin

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Orientation	Actuator Material	Actuator Height off PCB, Vertical	Switch Travel	Contact Rating @ Voltage	Features	Illumination Voltage (Nominal)	Termination Style	Illumination Type, Color	Mechanical Life	Outline [y]	Outline [x]	Operating Force	Circuit	Illumination	Mounting Type
NKK Switches JF15RP3HC	Square Button	70 °C	-25 °C	Off-Mom	Top Actuated	Nylon Polyamide (PA)	6.78 mm	0.8 mm	0.05 A 24 VDC	Process Sealed	2 VDC	PC Pin	LED Red	500000 Cycles	17.7 mm	22.8 mm	200 gf	SPST-NO	Illuminated	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
