23-4-E

Active

Grayhill Inc.

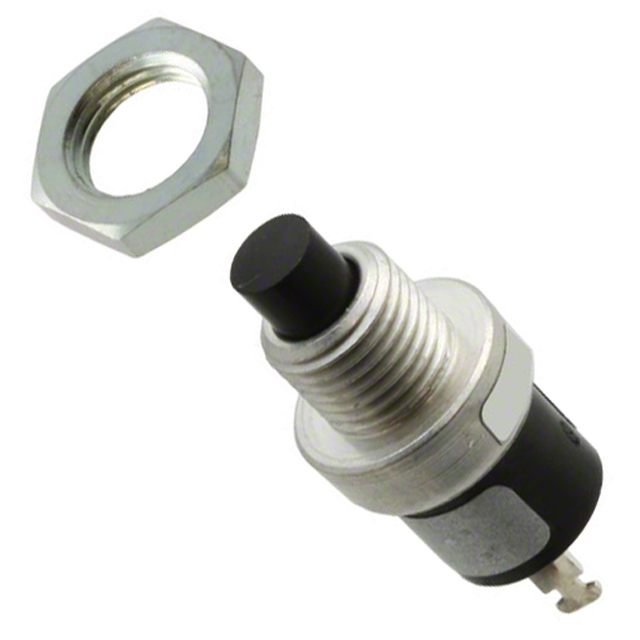

SWITCH PUSH SPST-NO 0.25A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.25A 115V

Technical Specifications

Parameters and characteristics for this part

SWITCH PUSH SPST-NO 0.25A 115V

Part	Electrical Life	Mounting Type	Mechanical Life	Termination Style	Type	Circuit	Current Rating (Amps)	Features	Actuator Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Marking	Switch Function
Grayhill Inc. 23-4-E	100000 Cycles	Panel Mount, Rear	100000 Cycles	Solder Lug	Standard	SPST-NO	250 mA	Epoxy Sealed Terminals	Round, Plunger	Black	85 °C	-40 °C	115 V	No Marking	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.51

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
